4949SQ-12(6)

Active

3M (TC)

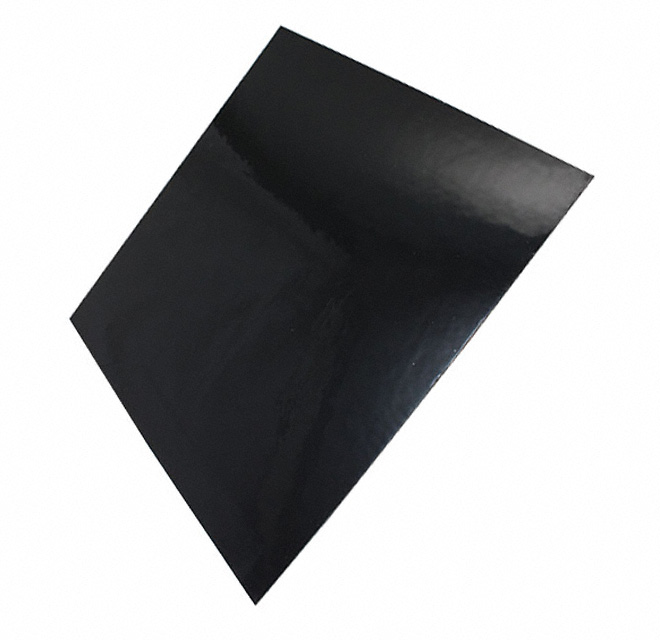

TAPE DBL SIDED BLACK 12"X12"

Deep-Dive with AI

Search across all available documentation for this part.

4949SQ-12(6)

Active

3M (TC)

TAPE DBL SIDED BLACK 12"X12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4949SQ-12(6)

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Black
Length	12 "
Length	304.8 mm
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Thickness - Adhesive	43 mils
Thickness - Adhesive	0.043 "
Thickness - Adhesive	1.092 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	General Purpose
Width [x]	304.8 mm
Width [x]	12 in

4949 Series

Part	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Tape Type	Temperature Range	Temperature Range	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Adhesive	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Shelf Life Start	Color	Width	Width	Width	Shelf Life	Width [x]	Width [x]
3M (TC) 4949-0.75-5	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black	0.75 in	19.05 mm	0.75 in	24 Months
3M (TC) 4949-1-5	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	25.4 mm	1 in
3M (TC) 4949-12-5	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	304.8 mm	12 in
3M (TC) 4949-1"X36YD-SMPK	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	32.9 m	108 ft	36 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	25.4 mm	1 in
3M (TC) 4949-1/2"X36YD-SMPK	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	32.9 m	108 ft	36 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black	0.5 in	0.5 in	12.7 mm	24 Months
3M (TC) 4949-3-5	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	76.2 mm	3 in
3M (TC) 4949SQ-12(6)	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	304.8 mm	12 "		4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	304.8 mm	12 in
3M (TC) 4-5-4949	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	101.6 mm	4 "
3M (TC) 4949-BLACK-1"X36YD	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	32.9 m	108 ft	36 yd	4 °C 40 °F	38 °C 100 °F	Acrylic	General Purpose	43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black				24 Months	25.4 mm	1 in
3M (TC) 1.25-5-4949	0.002 "	0.051 mm	2 mils	Polyester Film	Double Coated Double Sided	200 °F	93 °C	4.6 m	15 ft	5 yd	4 °C 40 °F	38 °C 100 °F	Acrylic		43 mils	0.043 "	1.092 mm	1.143 mm	45 mils	0.045 in	Date of Shipment	Black	1.25 in		31.75 mm	24 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.64
		10	$ 55.19
		25	$ 50.07
		50	$ 46.64
		100	$ 43.55
		250	$ 39.92

Description

General part information

4949 Series

Double Coated, Double Sided Tape Acrylic Adhesive Black 12.00" (304.80mm) X 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
