ITCSN-0400-25-U

Active

0.4, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Search across all available documentation for this part.

Active

0.4, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Technical Specifications

Parameters and characteristics for this part

Specification	ITCSN-0400-25-U

Color	Black
Features	Weather Resistant, Split Resistant, UV Resistant
Inner Diameter - Recovered [diameter]	3.81 mm
Inner Diameter - Recovered [diameter]	0.15 "
Inner Diameter - Supplied [diameter]	0.4 in
Inner Diameter - Supplied [diameter]	10.16 mm
Length	50.8 mm, 25.4 mm, 76.2 mm, 19.05 mm
Length	2 ", 1 in, 3 ", 0.75 "
Length	0.167 ', 0.083 ft, 0.25 ft, 0.062 '
Length	Enter Number of Feet in Order Quantity
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Spool Size	7.6 m
Spool Size	25 ft
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Semi Rigid

0.4, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Part	Material	Color	Length	Length	Length	Features	Length [x]	Length [x]	Length [x]	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Length	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Spool Size	Spool Size	Shrink Temperature	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]
3M ITCSN-0400-25-U	Polyolefin (PO), Irradiated	Black	19.05 mm, 25.4 mm, 50.8 mm, 76.2 mm	0.75 ", 1 in, 2 ", 3 "	0.062 ', 0.083 ft, 0.167 ', 0.25 ft	Split Resistant, UV Resistant, Weather Resistant	4 "	0.333 ft	101.6 mm	Date of Manufacture	-55 °C	110 °C	Enter Number of Feet in Order Quantity	Tubing, Semi Rigid	3.81 mm	0.15 "	27 °C, 80 °F	10 °C	7.6 m	25 ft	121 °C	120 Months	0.4 in	10.16 mm	1	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

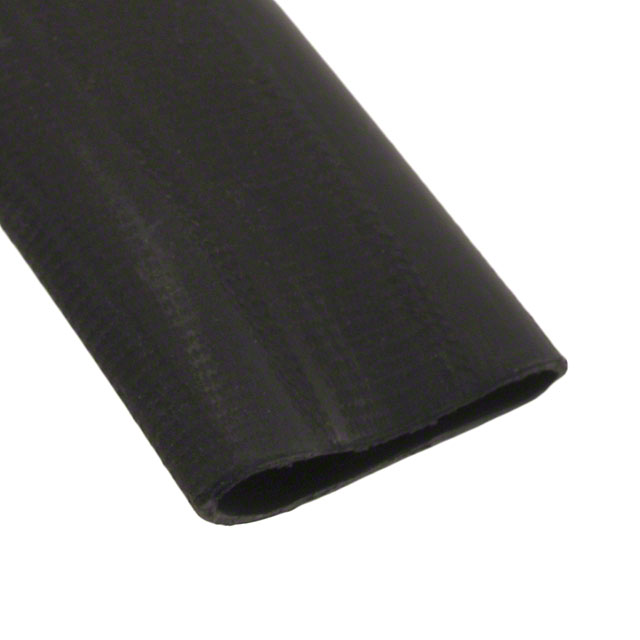

Heat Shrink Tubing, Semi Rigid 0.400" (10.16mm) 3 to 1 Black 0.250' (76.20mm, 3.00")
