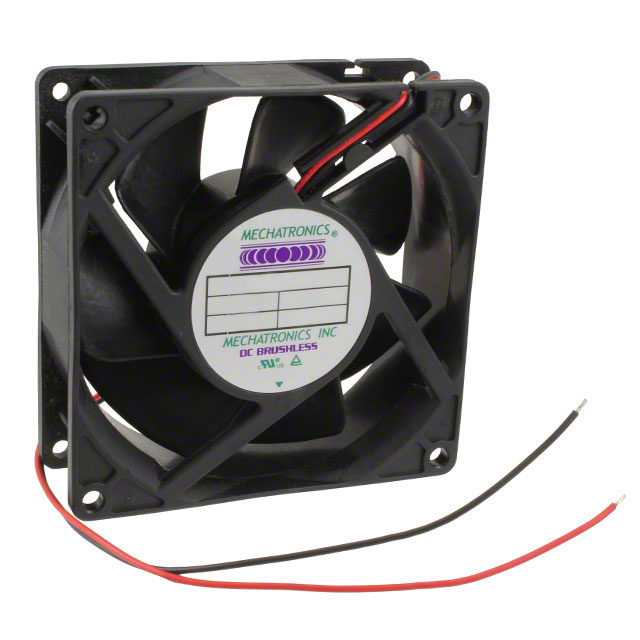

G9232E12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs DC Fan, Blower Lead Wire Spec +2

G9232E12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs DC Fan, Blower Lead Wire Spec +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.17

Description

General part information

G9232 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 60.0 CFM (1.68mł/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

DC Fan, Blower Lead Wire Spec

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	G9232E12B-FSR	G9232 Series

Air Flow	1.68 mł/min	1.34 - 1.9 m³/min
Air Flow	60 CFM	48 - 68 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.52 A	0.52 - 360 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermistor, Thermal Overload Protector (TOP), Speed Sensor (Tach), Conformal Coating
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	38 dB(A)	32 - 44 dB
RPM	3600 RPM	2800 - 4000 RPM
Static Pressure	69.7 Pa	44.8 - 82.2 Pa
Static Pressure	0.28 in H2O	0.18 - 0.33 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 - 36 VDC
Weight	0.335 lb	0.335 lb
Weight	151.95 g	151.95 g
Width [y]	32 mm	32 mm

Part	Fan Type	Features	Air Flow	Air Flow	Current Rating (Amps)	Width [y]	Weight	Weight	Termination	Noise	Bearing Type	Material - Blade	Voltage - Rated	RPM	Approval Agency	Static Pressure	Static Pressure	Ingress Protection
Mechatronics Fan Group G9232X12B1+4-FS-TL24	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor	68 CFM	1.9 m³/min	0.68 A	32 mm	0.335 lb	151.95 g	3 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	12 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa
Mechatronics Fan Group G9232X24B-FSR-EM	Tubeaxial	Thermal Overload Protector (TOP)	68 CFM	1.9 m³/min	0.68 A	32 mm	0.335 lb	151.95 g	2 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	24 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G9232E12B-FSR	Tubeaxial	Thermal Overload Protector (TOP)	60 CFM	1.68 mł/min	0.52 A	32 mm	0.335 lb	151.95 g	2 Wire Leads	38 dB(A)	Ball	Polybutylene Terephthalate (PBT)	12 VDC	3600 RPM	CE, cUL, TUV, UL	0.28 in H2O	69.7 Pa
Mechatronics Fan Group G9232E24B-FSR	Tubeaxial	Thermal Overload Protector (TOP)	60 CFM	1.68 mł/min	270 mA	32 mm	0.335 lb	151.95 g	2 Wire Leads	38 dB(A)	Ball	Polybutylene Terephthalate (PBT)	24 VDC	3600 RPM	CE, cUL, TUV, UL	0.28 in H2O	69.7 Pa
Mechatronics Fan Group G9232X12B1-FSR	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP)	68 CFM	1.9 m³/min	0.68 A	32 mm	0.335 lb	151.95 g	3 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	12 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa
Mechatronics Fan Group G9232X24B-FS	Tubeaxial	Thermal Overload Protector (TOP)	68 CFM	1.9 m³/min	360 mA	32 mm	0.335 lb	151.95 g	2 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	24 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa
Mechatronics Fan Group G9232X24B1-FSR	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP)	68 CFM	1.9 m³/min	0.68 A	32 mm	0.335 lb	151.95 g	3 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	24 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa
Mechatronics Fan Group G9232H12B1-FSR	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP)	55 CFM	1.54 mł/min	360 mA	32 mm	0.335 lb	151.95 g	3 Wire Leads	35 dB	Ball	Polybutylene Terephthalate (PBT)	12 VDC	3200 RPM	CE, cUL, TUV, UL	0.24 in H2O	59.8 Pa
Mechatronics Fan Group G9232M24B-FSR	Tubeaxial	Thermal Overload Protector (TOP)	48 CFM	1.34 m³/min	140 mA	32 mm	0.335 lb	151.95 g	2 Wire Leads	32 dB	Ball	Polybutylene Terephthalate (PBT)	24 VDC	2800 RPM	CE, cUL, TUV, UL	0.18 in H2O	44.8 Pa
Mechatronics Fan Group G9232X24B-FSR-CC	Tubeaxial	Conformal Coating, Thermal Overload Protector (TOP)	68 CFM	1.9 m³/min	360 mA	32 mm	0.335 lb	151.95 g	2 Wire Leads	44 dB	Ball	Polybutylene Terephthalate (PBT)	24 VDC	4000 RPM	CE, cUL, TUV, UL	0.33 in H2O	82.2 Pa

Part

Fan Type

Features

Air Flow

Current Rating (Amps)

Width [y]

Weight

Termination

Noise

Bearing Type

Material - Blade

Voltage - Rated

RPM

Approval Agency

Static Pressure

Ingress Protection

Mechatronics Fan Group

G9232X12B1+4-FS-TL24

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor

68 CFM

1.9 m³/min

0.68 A

32 mm

0.335 lb

151.95 g

3 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

12 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa

Mechatronics Fan Group

G9232X24B-FSR-EM

Tubeaxial

Thermal Overload Protector (TOP)

68 CFM

1.9 m³/min

0.68 A

32 mm

0.335 lb

151.95 g

2 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

24 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G9232E12B-FSR

Tubeaxial

Thermal Overload Protector (TOP)

60 CFM

1.68 mł/min

0.52 A

32 mm

0.335 lb

151.95 g

2 Wire Leads

38 dB(A)

Ball

Polybutylene Terephthalate (PBT)

12 VDC

3600 RPM

CE, cUL, TUV, UL

0.28 in H2O

69.7 Pa

Mechatronics Fan Group

G9232E24B-FSR

Tubeaxial

Thermal Overload Protector (TOP)

60 CFM

1.68 mł/min

270 mA

32 mm

0.335 lb

151.95 g

2 Wire Leads

38 dB(A)

Ball

Polybutylene Terephthalate (PBT)

24 VDC

3600 RPM

CE, cUL, TUV, UL

0.28 in H2O

69.7 Pa

Mechatronics Fan Group

G9232X12B1-FSR

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP)

68 CFM

1.9 m³/min

0.68 A

32 mm

0.335 lb

151.95 g

3 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

12 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa

Mechatronics Fan Group

G9232X24B-FS

Tubeaxial

Thermal Overload Protector (TOP)

68 CFM

1.9 m³/min

360 mA

32 mm

0.335 lb

151.95 g

2 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

24 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa

Mechatronics Fan Group

G9232X24B1-FSR

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP)

68 CFM

1.9 m³/min

0.68 A

32 mm

0.335 lb

151.95 g

3 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

24 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa

Mechatronics Fan Group

G9232H12B1-FSR

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP)

55 CFM

1.54 mł/min

360 mA

32 mm

0.335 lb

151.95 g

3 Wire Leads

35 dB

Ball

Polybutylene Terephthalate (PBT)

12 VDC

3200 RPM

CE, cUL, TUV, UL

0.24 in H2O

59.8 Pa

Mechatronics Fan Group

G9232M24B-FSR

Tubeaxial

Thermal Overload Protector (TOP)

48 CFM

1.34 m³/min

140 mA

32 mm

0.335 lb

151.95 g

2 Wire Leads

32 dB

Ball

Polybutylene Terephthalate (PBT)

24 VDC

2800 RPM

CE, cUL, TUV, UL

0.18 in H2O

44.8 Pa

Mechatronics Fan Group

G9232X24B-FSR-CC

Tubeaxial

Conformal Coating, Thermal Overload Protector (TOP)

68 CFM

1.9 m³/min

360 mA

32 mm

0.335 lb

151.95 g

2 Wire Leads

44 dB

Ball

Polybutylene Terephthalate (PBT)

24 VDC

4000 RPM

CE, cUL, TUV, UL

0.33 in H2O

82.2 Pa
