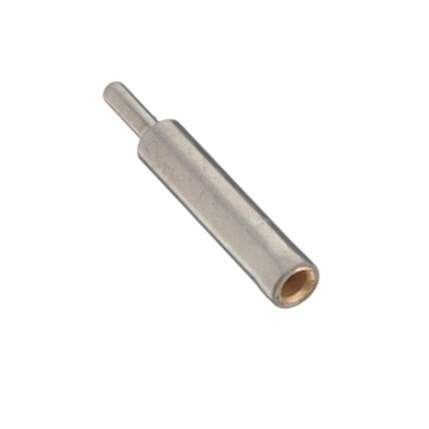

0461-4-15-01-11-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .060"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0461-4-15-01-11-14-04-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.041 in
Flange Diameter [diameter]	1.04 mm
Length - Overall	0.235 in
Length - Overall	5.97 mm
Mounting Hole Diameter [diameter]	0.51 mm
Mounting Hole Diameter [diameter]	0.02 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Solder

0461-4 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall	Length - Overall	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Mill-Max Manufacturing Corp. 0461-4-15-15-21-14-04-0	10 Áin	0.25 Ám	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Gold	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-11-14-04-0	10 Áin	0.25 Ám	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Gold	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-01-11-14-04-0	10 Áin	0.25 Ám	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Gold	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail					0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-21-27-04-0	30 Áin	0.76 Ám	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Gold	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-11-27-04-0	30 Áin	0.76 Ám	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Gold	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-21-84-04-0	100 µin	2.54 µm	-55 °C	125 °C	0.79 mm	0.031 in	0.51 mm	0.02 in	Tin	Beryllium Copper	0.46 mm	0.018 in	Solder	3.81 mm	0.15 in	0.041 in	1.04 mm	0.235 in	5.97 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm
