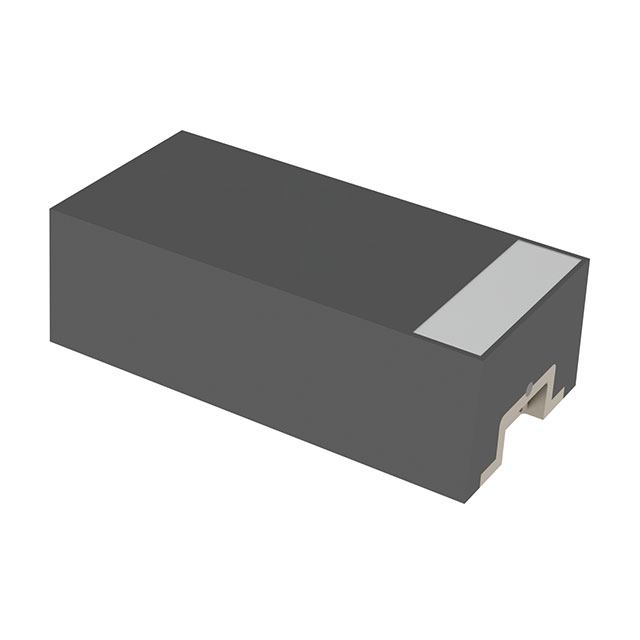

T597S476M006APE100

Active

KEMET

CAP TANT POLY 47UF 6.3V 1206

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 47UF 6.3V 1206

Technical Specifications

Parameters and characteristics for this part

Specification	T597S476M006APE100

Capacitance	47 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	Automotive
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Tolerance	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Package / Case	Lifetime @ Temp.	Capacitance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
KEMET T597S476M006APE200	200 mOhm	1.2 mm	0.047 in	6.3 V	20 %	AEC-Q200	0.063 in	1.6 mm	0.126 "	3.2 mm	Molded	1206 (3216 Metric)	2000 Hrs	47 µF	Automotive	-55 °C	125 °C	Surface Mount
KEMET T597S336M006APE200	200 mOhm	1.2 mm	0.047 in	6.3 V	20 %	AEC-Q200	0.063 in	1.6 mm	0.126 "	3.2 mm	Molded	1206 (3216 Metric)	2000 Hrs	33 ÁF	Automotive	-55 °C	125 °C	Surface Mount
KEMET T597S336M006APE100	100 mOhm	1.2 mm	0.047 in	6.3 V	20 %	AEC-Q200	0.063 in	1.6 mm	0.126 "	3.2 mm	Molded	1206 (3216 Metric)	2000 Hrs	33 ÁF	Automotive	-55 °C	125 °C	Surface Mount
KEMET T597S476M006APE100	100 mOhm	1.2 mm	0.047 in	6.3 V	20 %	AEC-Q200	0.063 in	1.6 mm	0.126 "	3.2 mm	Molded	1206 (3216 Metric)	2000 Hrs	47 µF	Automotive	-55 °C	125 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.39

General part information

47 µF Molded Tantalum Polymer Capacitor 6.3 V 1206 (3216 Metric) 100mOhm @ 100kHz
