GT-21001
ObsoleteKEMET

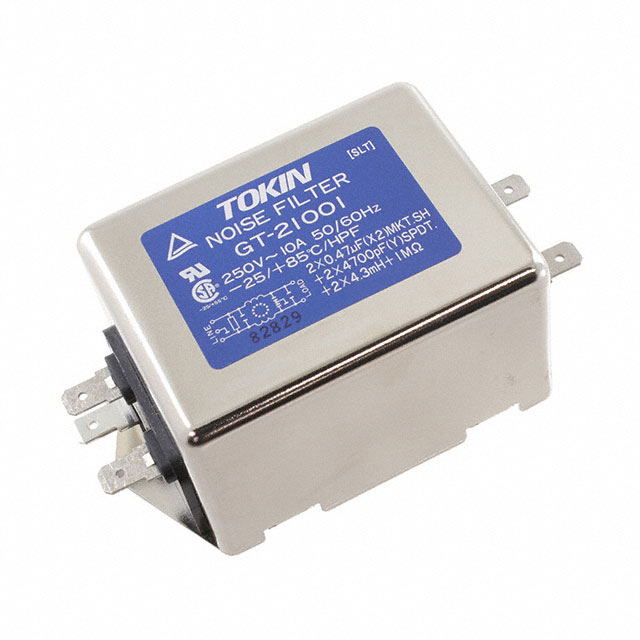

LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
GT-21001
ObsoleteKEMET
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GT-21001 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, TUV, UL |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 32 | $ 57.97 | |
Description
General part information
GT-2100 Series
Single Phase EMC/EMI Line Filter 10 A 250V Single Stage Quick Connect
Documents
Technical documentation and resources
