CY28329ZXC

Obsolete

Infineon Technologies

IC CLOCK DRIVER 56TSSOP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC CLOCK DRIVER 56TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	CY28329ZXC

Differential - Input:Output	No/Yes
Divider/Multiplier	Yes/No
Frequency - Max [Max]	133 MHz
Input	LVTTL, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output	Clock
Package / Case	6.1 mm
Package / Case	0.24 in
Package / Case	56-TFSOP
PLL	True
Ratio - Input:Output	1:22

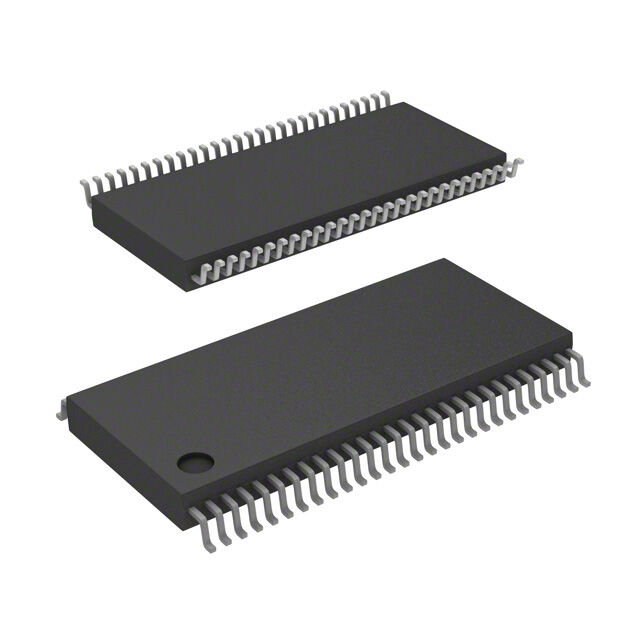

Supplier Device Package	56-TSSOP II
Type	Fanout Distribution, Clock/Frequency Synthesizer, Clock Driver, Spread Spectrum Clock Generator
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

Part	Input	Number of Circuits	Differential - Input:Output	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Divider/Multiplier	Mounting Type	Output	Ratio - Input:Output	Package / Case	Package / Case	Package / Case	PLL	Frequency - Max [Max]	Supplier Device Package
Infineon Technologies CY28329ZXC	Crystal LVTTL	1	No/Yes	Clock Driver Clock/Frequency Synthesizer Fanout Distribution Spread Spectrum Clock Generator	70 °C	0 °C	3.465 V	3.135 V	Yes/No	Surface Mount	Clock	1:22	6.1 mm	0.24 in	56-TFSOP		133 MHz	56-TSSOP II

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clock Driver, Clock/Frequency Synthesizer, Fanout Distribution, Spread Spectrum Clock Generator IC 133MHz 1 56-TFSOP (0.240", 6.10mm Width)
