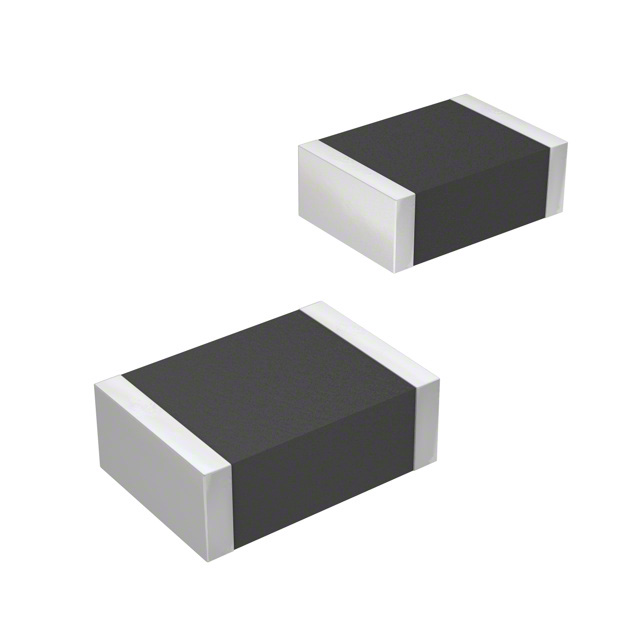

MH4532-151Y

Obsolete

Bourns Inc.

FERRITE BEAD 150 OHM 1812 1LN

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FERRITE BEAD 150 OHM 1812 1LN

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Filter Type	Current Rating (Max) [Max]	Mounting Type	Impedance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	DC Resistance (DCR) (Max)
Bourns Inc. MH4532-700Y	0.067 "	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	1	30 mOhm	Power Signal Line	6 A	Surface Mount	70 Ohms	-55 °C	125 °C	1812 (4532 Metric)
Bourns Inc. MH4532-151Y	0.067 "	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	1		Power Signal Line	5 A	Surface Mount	150 Ohms	-55 °C	125 °C	1812 (4532 Metric)	20 mOhm
Bourns Inc. MH4532-131Y	0.067 "	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	1	40 mOhm	Power Signal Line	3 A	Surface Mount	130 Ohms	-55 °C	125 °C	1812 (4532 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1812 (4532 Metric) 5A 20mOhm

Technical documentation and resources
