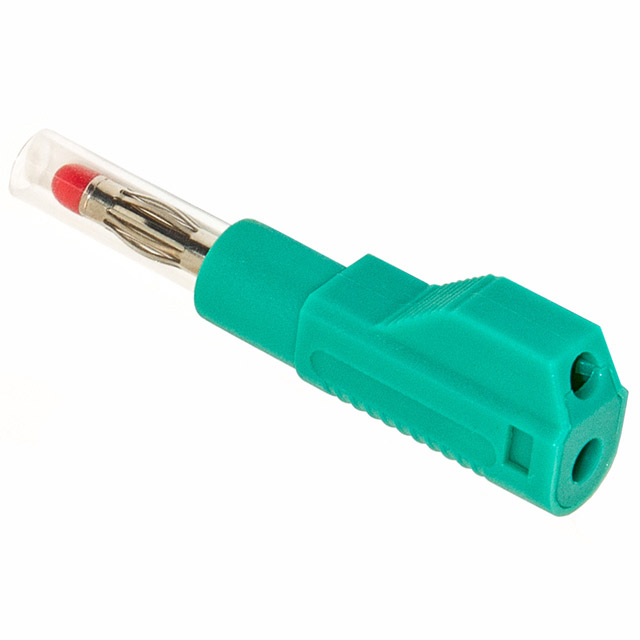

BU-32614-5
ActiveMueller Electric Co
CONN BANANA PLUG STACK SLDR GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-32614-5
ActiveMueller Electric Co
CONN BANANA PLUG STACK SLDR GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-32614-5 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Green |
| Contact Material | Brass, Beryllium Copper |
| Gender | Male |
| Insulation | Retractable, Sheathed |
| Mounting Type | Free Hanging (In-Line) |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solder |
| Type | Banana Plug, Stackable |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
BU-32614 Series
| Part | Body Material | Gender | Mounting Type | Contact Material | Color | Wire Gauge [Min] | Wire Gauge [Max] | Plug/Mating Plug Diameter | Insulation | Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Yellow | 14 AWG | 18 AWG | Standard Banana | Retractable Sheathed | Banana Plug Stackable | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Red | 10 AWG | 12 AWG | Standard Banana | Retractable Sheathed | Banana Plug | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Blue | 10 AWG | 12 AWG | Standard Banana | Retractable Sheathed | Banana Plug | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Black | 14 AWG | 18 AWG | Standard Banana | Retractable Sheathed | Banana Plug Stackable | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Green | 14 AWG | 18 AWG | Standard Banana | Retractable Sheathed | Banana Plug Stackable | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Blue | 14 AWG | 18 AWG | Standard Banana | Retractable Sheathed | Banana Plug Stackable | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Yellow | 10 AWG | 12 AWG | Standard Banana | Retractable Sheathed | Banana Plug | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Red | 14 AWG | 18 AWG | Standard Banana | Retractable Sheathed | Banana Plug Stackable | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | White | 10 AWG | 12 AWG | Standard Banana | Retractable Sheathed | Banana Plug | Solder |
Mueller Electric Co | Nylon Polyamide (PA) | Male | Free Hanging (In-Line) | Beryllium Copper Brass | Black | 10 AWG | 12 AWG | Standard Banana | Retractable Sheathed | Banana Plug | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-32614 Series
Banana Plug, Stackable Connector Standard Banana Solder Green
