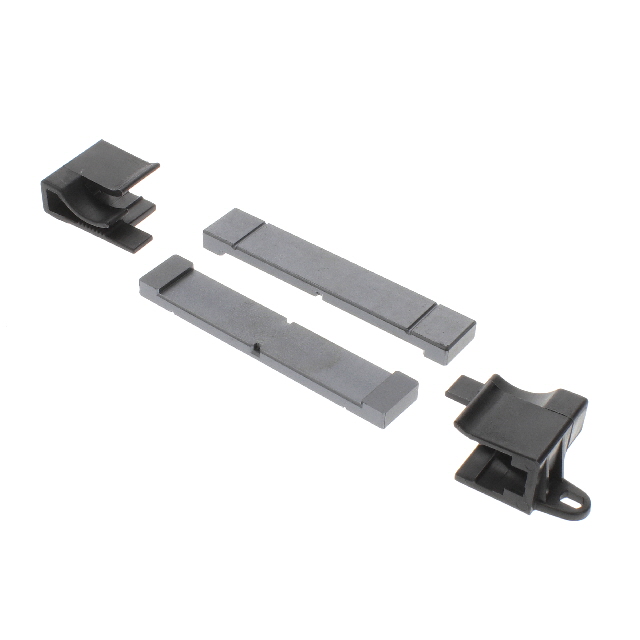

ESD-FPD-40-1
ActiveKEMET
NI-ZN FOR FLAT CABLE, SPLIT CORE
Deep-Dive with AI
Search across all available documentation for this part.
ESD-FPD-40-1
ActiveKEMET
NI-ZN FOR FLAT CABLE, SPLIT CORE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD-FPD-40-1 |
|---|---|
| Design | Clip Together (Order Qty 1=1 Assembly) |
| Inner Dimension [x] | 56 mm |
| Inner Dimension [x] | 2.205 in |
| Inner Dimension [y] | 2 mm |
| Inner Dimension [y] | 0.079 in |
| Length | 0.5 in |
| Length | 12.7 mm |
| Material | NIZn |
| Mounting Type | Free Hanging |
| Outer Dimension [y] | 2.677 in |
| Outer Dimension [y] | 68 mm |
| Outer Dimension [z] | 10 mm |
| Outer Dimension [z] | 0.394 " |
| Type | Flat |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ESD-FPD Series
Clip Together (Order Qty 1=1 Assembly) Free Hanging Ferrite Core ID 2.205" W x 0.079" H (56.00mm x 2.00mm) OD 2.677" W x 0.394" H (68.00mm x 10.00mm) Length 0.500" (12.70mm)
