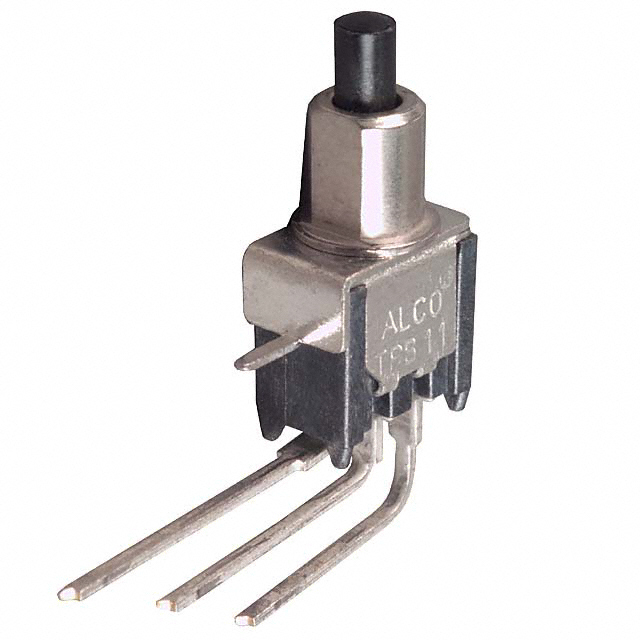

TPB11FGVRA004

Active

TE Connectivity Raychem Cable Protection

TPB11FGVRA004

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ENG_CD_1825097_A2.pdf

TPB11FGVRA004

Active

TE Connectivity Raychem Cable Protection

TPB11FGVRA004

Deep-Dive with AI

DocumentsDatasheet ENG_CD_1825097_A2.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TPB11FGVRA004

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

ALCOSWITCH TPB Series

Part	Actuator Marking	Termination Style	Type	Voltage Rating - AC	Mounting Type	Electrical Life	Actuator Type	Circuit	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Color - Actuator/Cap
TE Connectivity Raychem Cable Protection 1-1825097-2	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Round Plunger	SPDT	On-Mom	0.4 VA	65 °C	-30 ░C	20 V	Red
TE Connectivity Raychem Cable Protection TPB11CGPCES0	No Marking	PC Pin	Standard	20 V	Through Hole	100000 Cycles	Round Plunger	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11FGVRA004	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Round Plunger	SPDT	On-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11CGRAES0	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Round Plunger	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11FGPCES2	No Marking	PC Pin	Standard	20 V	Through Hole	100000 Cycles	Round Plunger	SPDT	On-Mom	0.4 VA	65 °C	-30 ░C	20 V	Red
TE Connectivity Raychem Cable Protection 2-1825097-2	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Flush Plunger Round	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11CGRA0	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Round Plunger	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11CGPC0	No Marking	PC Pin	Standard	20 V	Through Hole	100000 Cycles	Round Plunger	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Black
TE Connectivity Raychem Cable Protection TPB11CGRA2	No Marking	PC Pin	Standard	20 V	Through Hole Right Angle	100000 Cycles	Round Plunger	SPST-NO	Off-Mom	0.4 VA	65 °C	-30 ░C	20 V	Red
TE Connectivity Raychem Cable Protection 2-1825097-0	No Marking	PC Pin	Standard		Through Hole		Flush Plunger Round	SPST-NO	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.44
		10	$ 10.26
		25	$ 9.92

Description

General part information

ALCOSWITCH TPB Series

General Purpose Push Button Switch, Single Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, ALCOSWITCH TPB

Documents

Technical documentation and resources

Datasheet

Digital Datasheet

ENG_CD_1825097_A2.pdf

Product Drawings
