EVAL-L99H02QF
ActiveEVALUATION BOARD FOR L99H02QF DC MOTOR CONTROL IC
Deep-Dive with AI
Search across all available documentation for this part.
EVAL-L99H02QF
ActiveEVALUATION BOARD FOR L99H02QF DC MOTOR CONTROL IC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-L99H02QF |
|---|---|
| Embedded | True |
| Function | Motor Controller/Driver |
| Primary Attributes [Max] | 28 V |
| Primary Attributes [Min] | 6 V |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L99H02QF, STM8A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL-L99H02QF Series

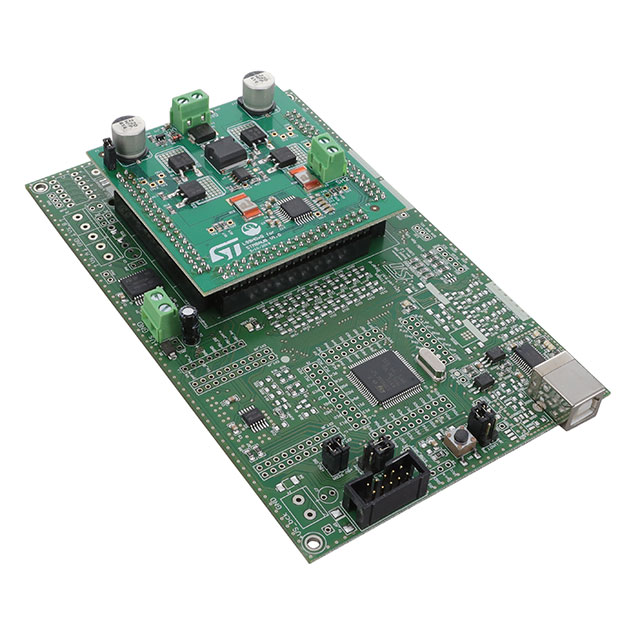

EVAL-L99H02QF is an evaluation board designed for DC motor control in automotive applications. It is composed by a motherboard and a daughterboard on which the L99H02QF is pre-assembled.
The motherboard, based on STM8A microcontroller, provides the logic section for monitoring and driving the L99H02QF assembled in the daughterboard.
With the aim to make the board usage and settings simpler, ST provides a dedicated user-friendly software with a Graphic User Interface (GUI). This enables the user to set L99H02QF parameters and registers, simultaneously showing real time device diagnostic information like motor evolution, free-wheeling, board temperature and much more.
