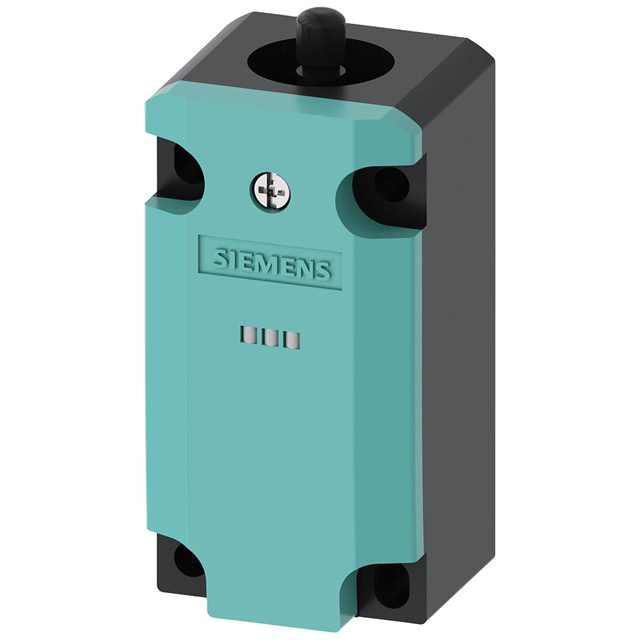

3SE51121KA00

Active

Siemens

SWITCH LIMIT 3PST 3A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3SE5 Position and Safety Switches Brochure +2

3SE51121KA00

Active

Siemens

SWITCH LIMIT 3PST 3A 24V

Deep-Dive with AI

DocumentsDatasheet 3SE5 Position and Safety Switches Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE51121KA00

Actuator Type	Round (Pin Plunger)
Circuit	3PST-2NC/1NO
Current Rating (Amps)	3 A
Electrical Life	10000000 Cycles
Ingress Protection	IP66/IP67
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	2039 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Voltage Rating - DC	24 V

3SE5112 Series

Part	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Circuit	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Termination Style	Ingress Protection	Electrical Life	Mechanical Life	Overtravel	Overtravel	Actuator Type	Voltage Rating - DC	Accessory Type
Siemens 3SE51120CD02	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	DPST-NO/NC	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles	3 mm	0.118 in	Roller Plunger	24 V
Siemens 3SE51120LD02	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles	3 mm	0.118 in	Roller Plunger	24 V
Siemens 3SE51121KA00	Off-Mom On-Mom	-25 °C	60 °C	2039 gf	3PST-2NC/1NO		3 A	Chassis Mount	Screw Terminal	IP66/IP67	10000000 Cycles	15000000 Cycles			Round (Pin Plunger)	24 V
Siemens 3SE51120LC02	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles	3 mm	0.118 in	Round (Pin Plunger)	24 V
Siemens 3SE51120MA001CA0	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles			Round (Pin Plunger)	24 V
Siemens 3SE51120LA001CA0	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles			Round (Pin Plunger)	24 V
Siemens 3SE51120KE01	Off-Mom On-Mom	-25 °C	85 °C	1020 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles			Top Rotary Roller	24 V
Siemens 3SE51120AA00																	Cover
Siemens 3SE51120CA00	Off-Mom On-Mom	-25 °C	85 °C	2039 gf	DPST-NO/NC	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles			Round (Pin Plunger)	24 V
Siemens 3SE51120KA001AJ0	Off-Mom On-Mom	-40 °C	85 °C	2039 gf	3PST-2NC/1NO	125 V	3 A 6 A	Chassis Mount	Screw Terminal	IP66/IP67	100000 Cycles	15000000 Cycles			Round (Pin Plunger)	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.35
