CDBV3-54S-G

Active

Comchip Technology

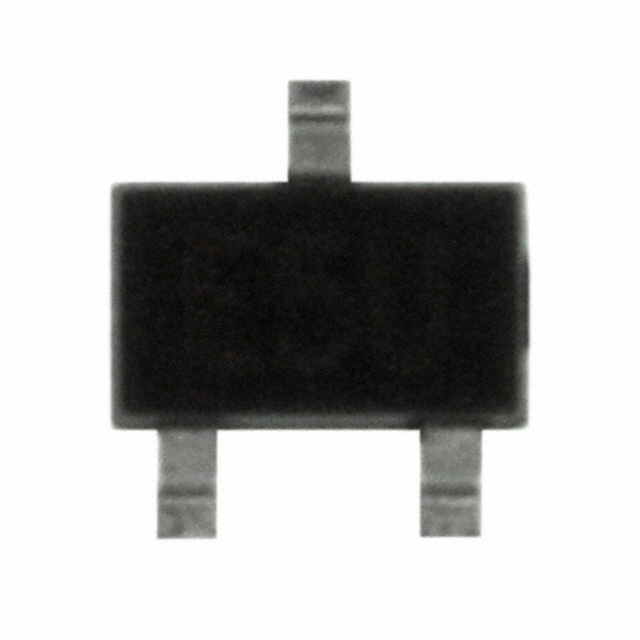

DIODE ARR SCHOT 30V 200MA SOT323

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARR SCHOT 30V 200MA SOT323

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBV3-54S-G	CDBV3-54 Series

Capacitance @ Vr, F	-	10 pF
Current - Average Rectified (Io)	-	200 mA
Current - Average Rectified (Io) (per Diode)	200 mA	200 mA
Current - Reverse Leakage @ Vr	2 µA	2 µA
Diode Configuration	1 Pair Series Connection	1 Pair Series Connection, 1 Pair Common Anode, 1 Pair Common Cathode
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Package / Case	SC-70, SOT-323	SC-70, SOT-323
Reverse Recovery Time (trr)	5 ns	4 - 5 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SOT-323	SOT-323
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

DIODE ARR SCHOT 30V 200MA SOT323

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction	Package / Case	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Mounting Type	Reverse Recovery Time (trr)	Speed	Speed	Diode Configuration	Capacitance @ Vr, F	Current - Average Rectified (Io)
Comchip Technology CDBV3-54S-G	1 V	Schottky	30 V	SOT-323	125 °C	SC-70, SOT-323	200 mA	2 µA	Surface Mount	5 ns	Any Speed	200 mA	1 Pair Series Connection
Comchip Technology CDBV3-54S-HF	1 V	Schottky	30 V	SOT-323	125 °C	SC-70, SOT-323	200 mA	2 µA	Surface Mount	4 ns	Any Speed	200 mA	1 Pair Series Connection
Comchip Technology CDBV3-54A-G	1 V	Schottky	30 V	SOT-323	125 °C	SC-70, SOT-323	200 mA	2 µA	Surface Mount	5 ns	Any Speed	200 mA	1 Pair Common Anode
Comchip Technology CDBV3-54-HF	1 V	Schottky	30 V	SOT-323	125 °C	SC-70, SOT-323		2 µA	Surface Mount	4 ns	Any Speed	200 mA		10 pF	200 mA
Comchip Technology CDBV3-54C-G	1 V	Schottky	30 V	SOT-323	125 °C	SC-70, SOT-323	200 mA	2 µA	Surface Mount	5 ns	Any Speed	200 mA	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Series Connection 30 V 200mA (DC) Surface Mount SC-70, SOT-323
