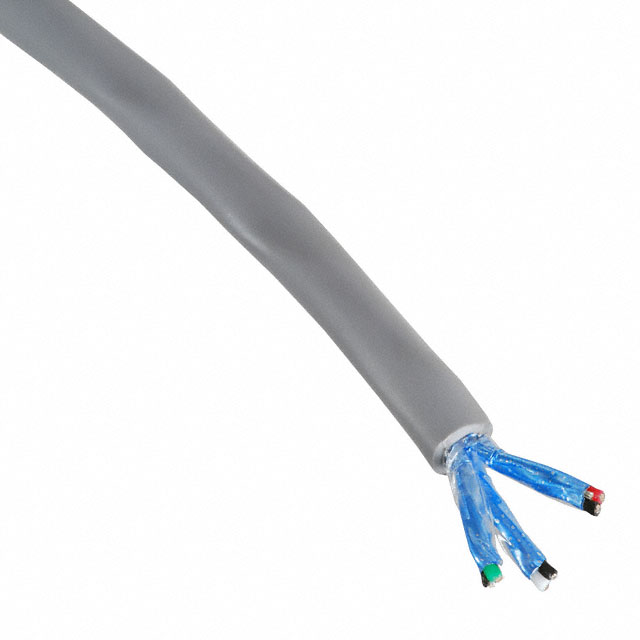

Specification	C6047A.46.10

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Polyethylene (PE)
Conductor Material	Tinned, Copper
Conductor Strand Count	16
Conductor Strand Gauge	30
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.395 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Gray
Length	5000 ft
Number of Conductors	6
Number of Conductors - Pair	3
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	18 AWG

C6047 Series

Part	Length	Conductor Insulation	Jacket (Insulation) Diameter	Wire Gauge	Conductor Strand Gauge	Conductor Strand Count	Number of Conductors - Pair	Conductor Arrangement	Number of Conductors	Shield Material	Cable Type	Shield Coverage	Jacket (Insulation) Material	Jacket Color	Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Shield Type	Features	Conductor Material	Usage	Jacket (Insulation) Thickness
Prysmian Group C6047A.41.10	50 ft 500 ft 1000 ft	Polyethylene (PE)	0.395 in	18 AWG	30	16	3	Twisted	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 V	-20 °C	80 °C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.032 in
Prysmian Group C6047A.38.10	500 ft	Polyethylene (PE)	0.395 in	18 AWG	30	16	3	Twisted	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 V	-20 °C	80 °C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.032 in
Prysmian Group C6047A.41.10	50 ft 100 ft 500 ft 1000 ft	Polyethylene (PE)	0.395 in	18 AWG	30	16	3	Twisted	6		Multi-Pair		Poly-Vinyl Chloride (PVC)	Gray	300 V	-20 °C	80 °C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.032 in
Prysmian Group C6047A.46.10	5000 ft	Polyethylene (PE)	0.395 in	18 AWG	30	16	3	Twisted	6	Flexfoil®	Multi-Pair	100 %	Poly-Vinyl Chloride (PVC)	Gray	300 V	-20 °C	80 °C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.032 in
Prysmian Group C6047A.46.10	5000 ft	Polyethylene (PE)	0.395 in	18 AWG	30	16	3	Twisted	6		Multi-Pair		Poly-Vinyl Chloride (PVC)	Gray	300 V	-20 °C	80 °C	Foil	Drain Wire Rip Cord	Copper Tinned	Computer	0.032 in
