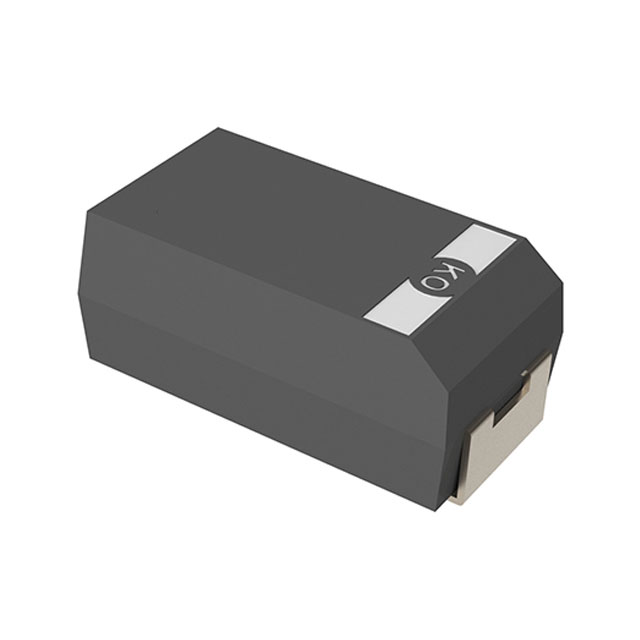

T520Y337M010AHE015

Active

KEMET

CAPACITOR,330UF,10VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

T520Y337M010AHE015

Active

KEMET

CAPACITOR,330UF,10VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520Y337M010AHE015

Capacitance	330 µF
ESR (Equivalent Series Resistance)	15 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	Y
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

T520Y Series

Part	Package / Case	Package / Case	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Capacitance	Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Manufacturer Size Code
KEMET T520Y477M006ATE025	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	470 µF	Molded	General Purpose	0.157 in	4 mm	6.3 V	105 ░C	-55 °C	25 mOhm	Y
KEMET T520Y687M2R5ATE025	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	680 µF	Molded	General Purpose	0.157 in	4 mm	2.5 V	105 ░C	-55 °C	25 mOhm	Y
KEMET T520Y108M2R5ATE010	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	1000 µF	Molded	General Purpose	0.157 in	4 mm	2.5 V	105 ░C	-55 °C	10 mOhm	Y
KEMET T520Y157M010ATE015	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	150 µF	Molded	General Purpose	0.157 in	4 mm	10 V	105 ░C	-55 °C	15 mOhm	Y
KEMET T520Y227M010ATE0407280	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	220 µF	Molded	General Purpose	0.157 in	4 mm	10 V	105 ░C	-55 °C	40 mOhm	Y
KEMET T520Y687M004ATE010	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	680 µF	Molded	General Purpose	0.157 in	4 mm	4 V	105 ░C	-55 °C	10 mOhm	Y
KEMET T520Y337M010AHE015	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	330 µF	Molded	General Purpose	0.157 in	4 mm	10 V	105 ░C	-55 °C	15 mOhm	Y
KEMET T520Y477M006ATE018	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Surface Mount	470 µF	Molded	General Purpose	0.157 in	4 mm	6.3 V	105 ░C	-55 °C	18 mOhm	Y

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.95
		10	$ 3.40
		50	$ 3.08
		100	$ 2.54
	Tape & Reel (TR)	500	$ 1.96
Newark	Each (Supplied on Full Reel)	1	$ 2.58
		2000	$ 2.46
		4000	$ 2.29
		8000	$ 2.13
		12000	$ 2.05
		20000	$ 2.02

Description

General part information

T520Y Series

330 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 15mOhm @ 100kHz
