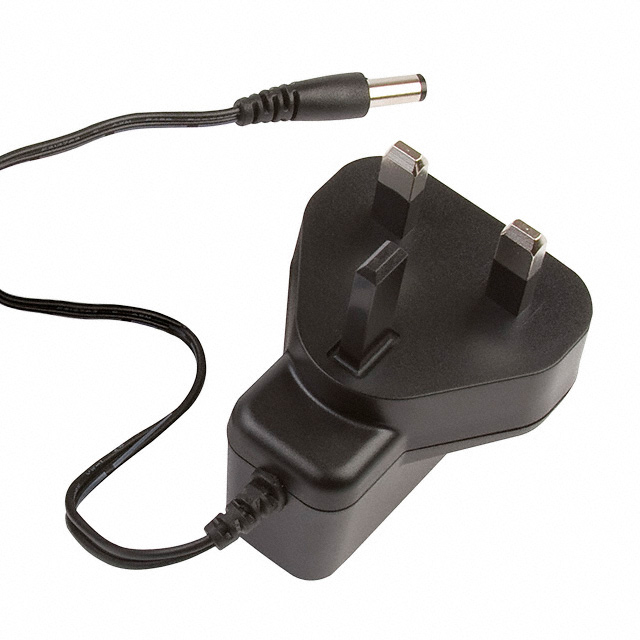

VEL05US090-UK-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 9V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VEL05US090-UK-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 9V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VEL05 Series

9V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEL05US090-UK-JA	VEL05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB, CB, TUV
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	550 mA	1 - 830 mA
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	BS 1363	BS 1363, CEE 7/16, NEMA 1-15P
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug, USB Micro
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	5 W	5 W
Region Utilized	United Kingdom	United Kingdom, Europe, North America
Size / Dimension [x]	2.17 "	2.17 "
Size / Dimension [x]	55.1 mm	55.1 mm
Size / Dimension [y]	1.95 in	1.95 - 24.13 in
Size / Dimension [y]	49.5 mm	24.1 - 49.5 mm
Size / Dimension [z]	1.69 in	1.4 - 2.13 in
Size / Dimension [z]	42.9 mm	35.5 - 54 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	9 V	5 - 12 V
Weight	0.28 lb	0.28 lb
Weight	127.01 g	127.01 g

VEL05 Series

AC/DC WALL MOUNT ADAPTER 9V 5W

Part	Region Utilized	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption	Form	Current - Output (Max) [Max]	Standard Number	Cord Length	Cord Length	Efficiency	Input Type	Operating Temperature [Max]	Approval Agency	Polarization	Input Connector	Applications	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Weight	Weight
XP Power VEL05US090-UK-JA	United Kingdom	9 V	2.17 "	1.69 in	42.9 mm	1.95 in	55.1 mm	49.5 mm	100 mW	Wall Mount (Class II)	550 mA	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	BS 1363	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US050-EU-UB	Europe	5 V	2.17 "	2.13 "	54 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	1 A	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB		CEE 7/16	ITE (Commercial)	5 W	90 VAC	264 VAC	USB Micro			0.28 lb	127.01 g
XP Power VEL05US060-US-JA	North America	6 V	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	830 mA	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	NEMA 1-15P	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US090-US-JA	North America	9 V	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	550 mA	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	NEMA 1-15P	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US050-UK-JA	United Kingdom	5 V	2.17 "	1.69 in	42.9 mm	1.95 in	55.1 mm	49.5 mm	100 mW	Wall Mount (Class II)	1 A	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	BS 1363	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US120-EU-JA	Europe	12 V	2.17 "	2.13 "	54 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	420 mA	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	CEE 7/16	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US050-US-BB	North America	5 V	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	1 A	62368-1			Level VI	Fixed Blade	60 °C	CB, TUV		NEMA 1-15P	ITE (Commercial)	5 W	90 VAC	264 VAC				0.28 lb	127.01 g
XP Power VEL05US050-US-JA	North America	5 V	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	1 A	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB, TUV	Positive Center	NEMA 1-15P	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
XP Power VEL05US050-UK-UB	United Kingdom	5 V	2.17 "	1.69 in	42.9 mm	1.95 in	55.1 mm	49.5 mm	100 mW	Wall Mount (Class II)	1 A	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB		BS 1363	ITE (Commercial)	5 W	90 VAC	264 VAC	USB Micro			0.28 lb	127.01 g
XP Power VEL05US060-EU-JA	Europe	6 V	2.17 "	2.13 "	54 mm	24.13 mm	55.1 mm	24.1 mm	100 mW	Wall Mount (Class II)	830 mA	62368-1	1.5 m	59 in	Level VI	Fixed Blade	60 °C	CB	Positive Center	CEE 7/16	ITE (Commercial)	5 W	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm	0.28 lb	127.01 g
