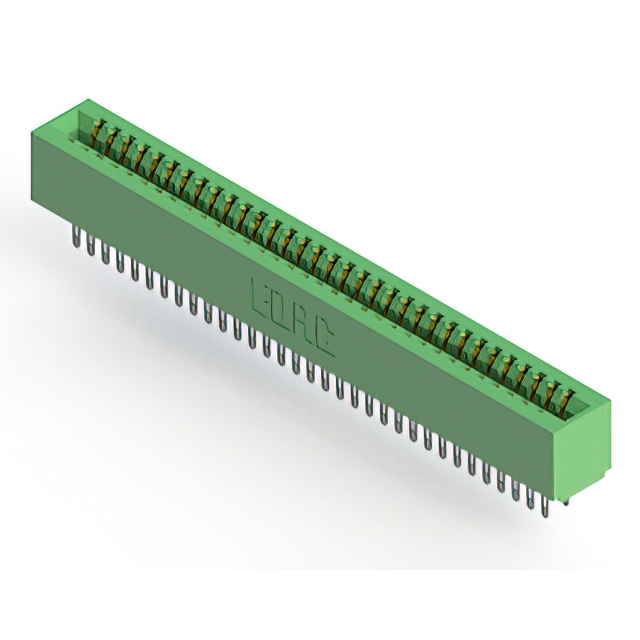

Specification	341-066-500-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	33, 66
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

341-066 Series

Part	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Termination	Contact Type	Gender	Card Type	Contact Finish Thickness	Flange Feature	Color	Contact Material	Read Out	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Mounting Type	Pitch	Material - Insulation	Termination Rows	Flange Feature Diameter	Features
EDAC Inc. 341-066-522-207	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount M3 Threaded Insert Top Opening	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows
EDAC Inc. 341-066-500-204	0.054 in	0.07 in	Gold	Solder Eyelet(s)	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount Top Opening Unthreaded	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	DAP Diallyl Phthalate	2 rows	0.156 in
EDAC Inc. 341-066-555-208	0.054 in	0.07 in	Gold	Solder Eyelet(s)	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows		Card Extender
EDAC Inc. 341-066-556-207	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount M3 Threaded Insert Top Opening	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Board Edge Straddle Mount	0.1 in	Polyester Thermoplastic	2 rows		Card Extender
EDAC Inc. 341-066-521-203	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Floating Bobbin Flush Mount	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 341-066-500-203	0.054 in	0.07 in	Gold	Solder Eyelet(s)	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Floating Bobbin Flush Mount	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	DAP Diallyl Phthalate	2 rows	0.116 in
EDAC Inc. 341-066-556-202	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount Top Opening Unthreaded	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Board Edge Straddle Mount	0.1 in	Polyester Thermoplastic	2 rows	0.128 in	Card Extender
EDAC Inc. 341-066-560-203	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Floating Bobbin Flush Mount	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows	0.116 in	Card Extender
EDAC Inc. 341-066-524-202	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount Top Opening Unthreaded	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 341-066-520-202	0.054 in	0.07 in	Gold	Solder	Semi Bellows	Female	Dual Edge Non Specified	10 Ąin	Flush Mount Top Opening Unthreaded	Green	Copper Alloy	Dual	2	-40 °C	105 °C	33 66	Through Hole	0.1 in	Polyester Thermoplastic	2 rows	0.128 in
