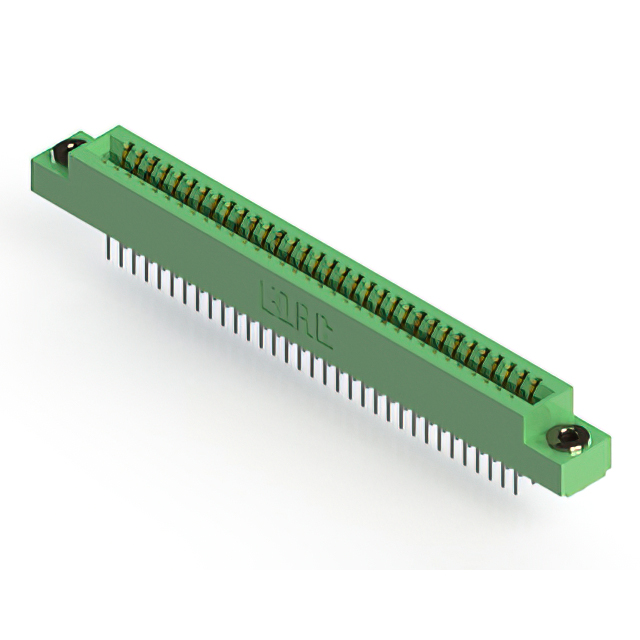

341-066-521-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 66 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-066-521-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 66 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-066-521-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-066 Series

Part	Color	Mounting Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Material - Insulation	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Termination Rows	Contact Material	Pitch [x]	Pitch [x]	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 341-066-522-207	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	2	Copper Alloy	2.54 mm	0.1 in	Solder
EDAC Inc. 341-066-500-204	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	2	Copper Alloy	2.54 mm	0.1 in	Solder Eyelet(s)	3.96 mm	0.156 in
EDAC Inc. 341-066-555-208	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	2.54 mm	0.1 in	Solder Eyelet(s)			Card Extender
EDAC Inc. 341-066-556-207	Green	Board Edge Straddle Mount	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	2	Copper Alloy	2.54 mm	0.1 in	Solder			Card Extender
EDAC Inc. 341-066-521-203	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Floating Bobbin Flush Mount	2	Copper Alloy	2.54 mm	0.1 in	Solder	2.95 mm	0.116 in
EDAC Inc. 341-066-500-203	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Floating Bobbin Flush Mount	2	Copper Alloy	2.54 mm	0.1 in	Solder Eyelet(s)	2.95 mm	0.116 in
EDAC Inc. 341-066-524-202	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	2	Copper Alloy	2.54 mm	0.1 in	Solder	3.25 mm	0.128 "
EDAC Inc. 341-066-520-202	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	2	Copper Alloy	2.54 mm	0.1 in	Solder	3.25 mm	0.128 "
EDAC Inc. 341-066-524-204	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	2	Copper Alloy	2.54 mm	0.1 in	Solder	3.96 mm	0.156 in
EDAC Inc. 341-066-500-201	Green	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	66	10 Áin	0.25 Ám	33	Semi Bellows	Female	2	-40 °C	105 ░C		2	Copper Alloy	2.54 mm	0.1 in	Solder Eyelet(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.03
LCSC	Piece	1	$ 8.70
		200	$ 3.37
		500	$ 3.25
		1000	$ 3.19
Newark	Each	1	$ 17.10
		100	$ 10.76
		250	$ 9.79
		500	$ 8.23
		1000	$ 6.54

Description

General part information

341-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
