D38999/25YJ43SN

Active

Glenair

CONNECTOR

Search across all available documentation for this part.

Active

Glenair

CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/25YJ43SN

Applications	Military, Medical, Automotive, Aerospace
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Number of Positions	43
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999
Shell Finish	Passivated
Shell Material	Stainless Steel
Shell Size - Insert	25
Shell Size, MIL	J

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9709.58

CONNECTOR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features	Applications	Number of Positions	Shell Size - Insert	Grade	Insert Material	Shell Finish	Shell Size, MIL	Orientation	Contact Material	Connector Type	Shell Material	Contact Finish - Mating	Qualification	Primary Material
Glenair D38999/25YJ43SN	-65 ░C	200 °C	IP68 - Dust Tight, Waterproof	Self Locking	Aerospace, Automotive, Medical, Military	43	25	Military	Thermoplastic	Passivated	J	N	Copper Alloy	Receptacle, Female Sockets	Stainless Steel	Gold	MIL-DTL-38999	Metal

General part information

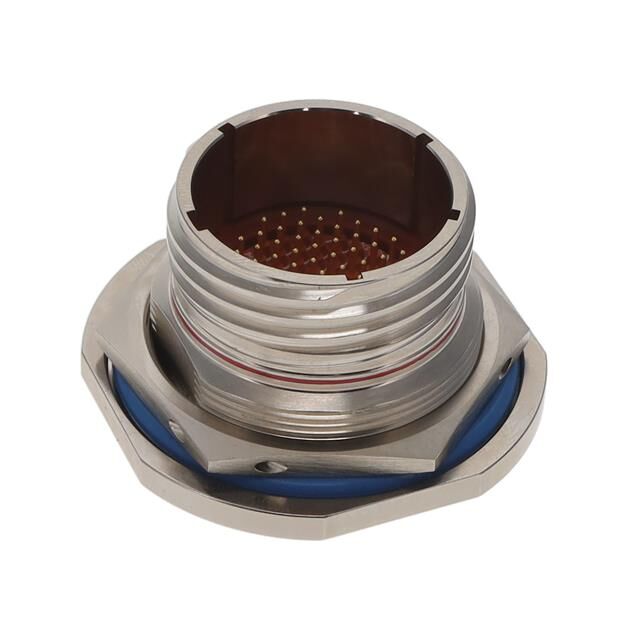

43 Position Circular Connector Receptacle, Female Sockets Solder Cup
