357-084-424-201

Active

EDAC Inc.

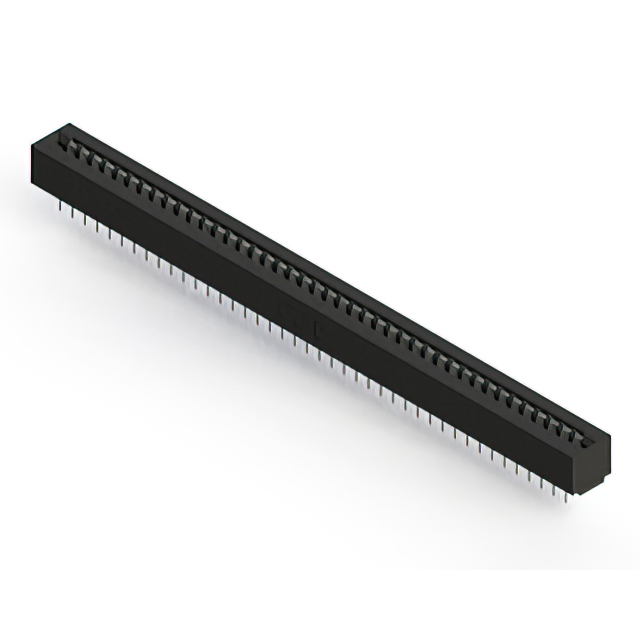

3.96MM STRAIGHT 84P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-084-424-201

Active

EDAC Inc.

3.96MM STRAIGHT 84P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-084-424-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

357-084 Series

...

Part	Read Out	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Contact Material	Termination	Number of Rows	Material - Insulation	Pitch [x]	Pitch [x]	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Flange Feature	Number of Positions/Bay/Row [custom]	Gender	Mounting Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 357-084-456-278	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2	4-40 Flush Mount Threaded Insert Top Opening	42	Female	Board Edge Straddle Mount	Non Specified - Dual Edge
EDAC Inc. 357-084-500-202	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder Eyelet(s)	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Gold	-40 °C	105 ░C	2	Flush Mount Top Opening Unthreaded	42	Female	Through Hole	Non Specified - Dual Edge	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 357-084-459-258	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2	4-40 Flush Mount Threaded Insert Top Opening	42	Female	Through Hole Right Angle	Non Specified - Dual Edge					Card Guides
EDAC Inc. 357-084-558-278	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder Wire Wrap	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Gold	-40 °C	105 ░C	2	4-40 Flush Mount Threaded Insert Top Opening	42	Female	Through Hole Right Angle	Non Specified - Dual Edge	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 357-084-424-201	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2		42	Female	Through Hole	Non Specified - Dual Edge
EDAC Inc. 357-084-542-212	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Wire Wrap	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Gold	-40 °C	105 ░C	2	Flush Mount Side Opening Unthreaded	42	Female	Through Hole	Non Specified - Dual Edge	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 357-084-556-204	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Gold	-40 °C	105 ░C	2	Flush Mount Top Opening Unthreaded	42	Female	Board Edge Straddle Mount	Non Specified - Dual Edge	10 Áin	0.25 Ám	3.96 mm	0.156 in	Card Extender
EDAC Inc. 357-084-459-212	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2	Flush Mount Side Opening Unthreaded	42	Female	Through Hole Right Angle	Non Specified - Dual Edge			3.25 mm	0.128 "
EDAC Inc. 357-084-422-202	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2	Flush Mount Top Opening Unthreaded	42	Female	Through Hole	Non Specified - Dual Edge			3.25 mm	0.128 "
EDAC Inc. 357-084-460-202	Dual	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	84	Copper Alloy	Solder	2	Polyester Thermoplastic	0.156 in	3.96 mm	Black	Tin	-40 °C	105 ░C	2	Flush Mount Top Opening Unthreaded	42	Female	Board Edge Straddle Mount	Non Specified - Dual Edge			3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.06
LCSC	Piece	1	$ 19.10
		200	$ 7.39
		500	$ 7.13
		1000	$ 7.00
Newark	Each	1	$ 19.81
		100	$ 10.87
		250	$ 9.91
		500	$ 8.77
		1000	$ 7.12

Description

General part information

357-084 Series

84 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
