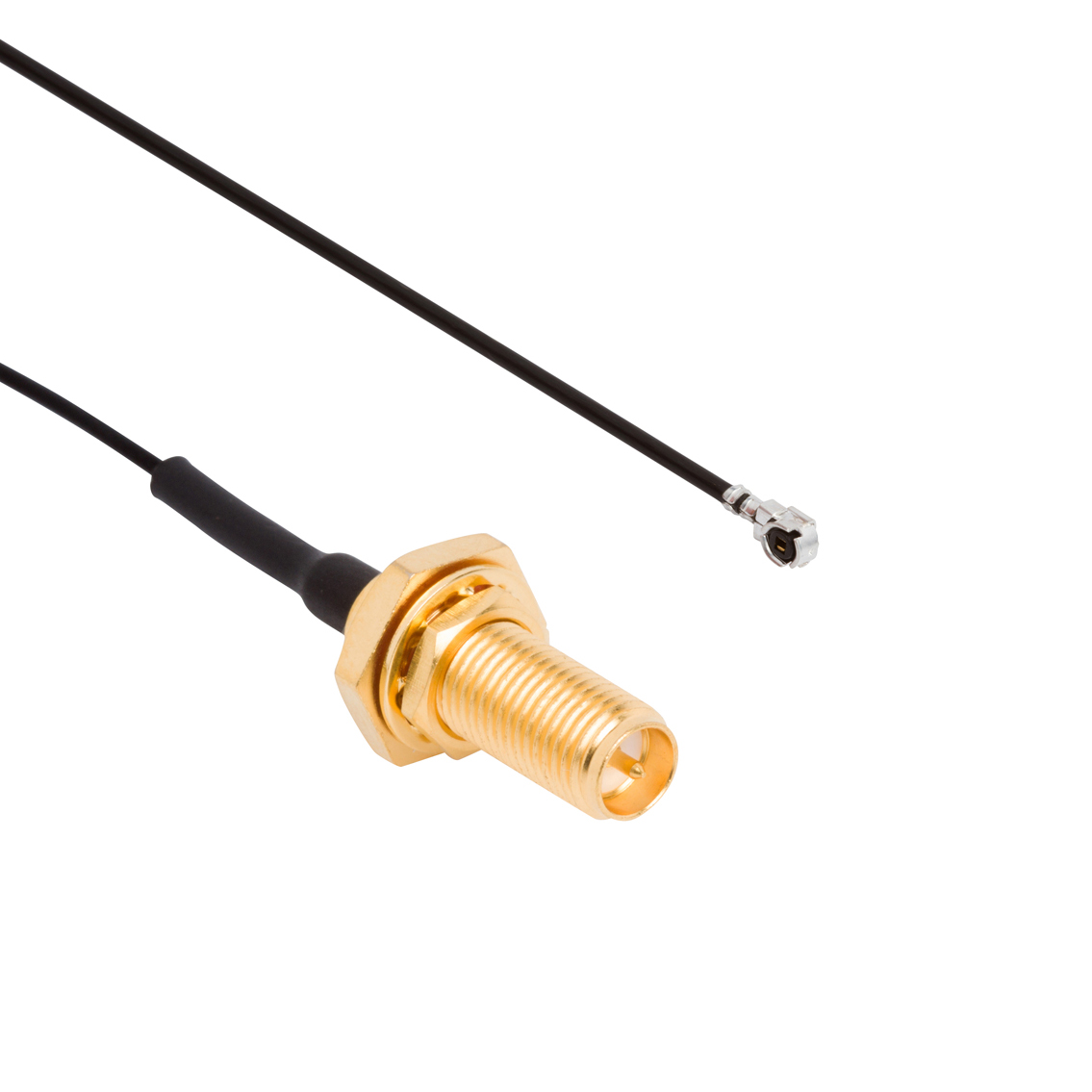

336320-12-0400

Active

Amphenol RF

CABLE ASSEMBLY COAXIAL 0.4M SMA TO AMC F-M

Search across all available documentation for this part.

Active

Amphenol RF

CABLE ASSEMBLY COAXIAL 0.4M SMA TO AMC F-M

Technical Specifications

Parameters and characteristics for this part

Specification	336320-12-0400

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	15.75 "
Length	400 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC)
Style	AMC to RP-SMA

Part	Cable Type	2nd Contact Gender	1st Connector Mounting Feature	Color	1st Connector Mounting Type	Length [x]	Length [x]	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Style	Style	Ingress Protection	1st Connector	Frequency - Max [Max]	1st Contact Gender	Length	Length
Amphenol RF 336320-12-0150	1.13mm OD Coaxial Cable	Female	Bulkhead - Front Side Nut	Black	Panel Mount	150 mm	5.906 "	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC)	AMC to RP-SMA	IP67 - Dust Tight Waterproof	RP-SMA Jack	6000 MHz	Male
Amphenol RF 336320-12-0400	1.13mm OD Coaxial Cable	Female	Bulkhead - Front Side Nut	Black	Panel Mount			AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC)	AMC to RP-SMA	IP67 - Dust Tight Waterproof	RP-SMA Jack	6000 MHz	Male	15.75 "	400 mm
Amphenol RF 336320-12-0200	1.13mm OD Coaxial Cable	Female	Bulkhead - Front Side Nut	Black	Panel Mount			AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC)	AMC to RP-SMA	IP67 - Dust Tight Waterproof	RP-SMA Jack	6000 MHz	Male	7.874 in	200 mm
Amphenol RF 336320-12-0450	1.13mm OD Coaxial Cable	Female	Bulkhead - Front Side Nut	Black	Panel Mount	450 mm	17.72 in	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC)	AMC to RP-SMA	IP67 - Dust Tight Waterproof	RP-SMA Jack	6000 MHz	Male
Amphenol RF 336320-12-0300	1.13mm OD Coaxial Cable	Female	Bulkhead - Front Side Nut	Black	Panel Mount	300 mm	11.811 in	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC)	AMC to RP-SMA	IP67 - Dust Tight Waterproof	RP-SMA Jack	6000 MHz	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.13mm OD Coaxial Cable 15.75" (400.00mm)
