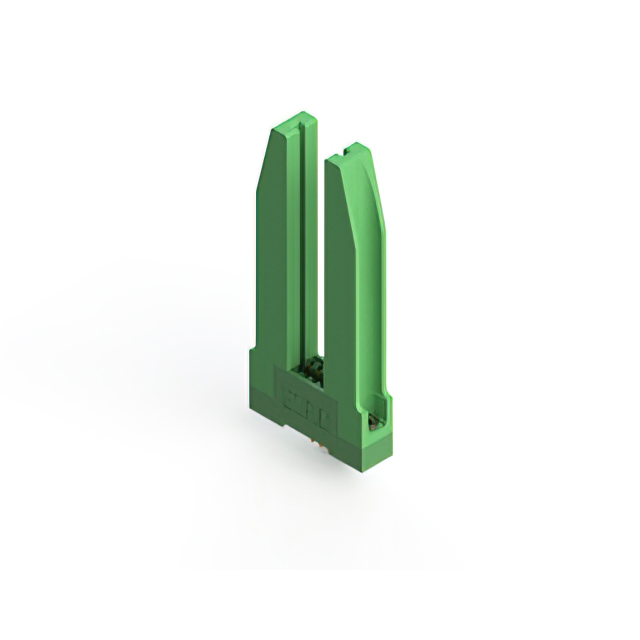

345-005-541-178
ActiveEDAC Inc.
CONN EDGE SINGLE FML 5POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-005-541-178
ActiveEDAC Inc.
CONN EDGE SINGLE FML 5POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-005-541-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-005 Series
...
| Part | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Flange Feature | Contact Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Features | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish | Termination | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Wire Wrap | ||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Solder Eyelet(s) | ||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder | |||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | |||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Floating Bobbin Flush Mount | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 0.116 in | 2.95 mm | |||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Solder | ||||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 0.128 " | 3.25 mm | |||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder Eyelet(s) | 0.116 in | 2.95 mm | |||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 7.10 | |
Description
General part information
345-005 Series
5 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
