2308-1-00-50-00-00-07-0

Active

Mill-Max Manufacturing Corp.

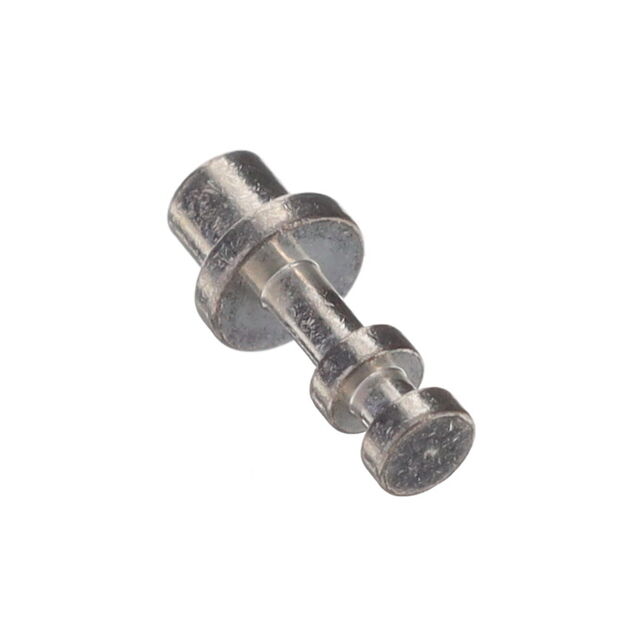

TERM TURRET SINGLE L=3.96MM

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

TERM TURRET SINGLE L=3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	2308-1-00-50-00-00-07-0

Board Thickness	0.031 in
Board Thickness	0.79 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	300 µin
Contact Finish Thickness	7.62 µm
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	0.061 in
Diameter - Turret Head [diameter]	1.55 mm
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Above Board	3.96 mm
Length - Above Board	0.156 in
Length - Below Flange [x]	0.054 in
Length - Below Flange [x]	1.37 mm
Length - Overall	0.21 in
Length - Overall	5.33 mm
Mounting Hole Diameter	1.63 mm
Mounting Hole Diameter [diameter]	0.064 in
Mounting Type	Through Hole
Number of Turrets	Double
Staking Side ID	0.044 in
Staking Side ID	1.12 mm
Staking Side OD	0.061 in
Staking Side OD	1.55 mm
Terminal Type	Single End
Termination	Swage

Part	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Material	Terminal Type	Mounting Type	Length - Overall	Length - Overall	Length - Below Flange [x]	Length - Below Flange [x]	Staking Side ID	Staking Side ID	Staking Side OD	Staking Side OD	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Board Thickness	Board Thickness	Insulation	Number of Turrets	Length - Above Board	Length - Above Board	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter
Mill-Max Manufacturing Corp. 2308-1-00-01-00-00-07-0	Tin-Lead	2.39 mm	0.094 in	Swage	Brass Alloy	Single End	Through Hole	0.21 in	5.33 mm	0.054 in	1.37 mm	0.044 in	1.12 mm	0.061 in	1.55 mm	0.061 in	1.55 mm	0.031 in	0.79 mm	Non-Insulated	Double	3.96 mm	0.156 in	200 Áin	5.08 Ám	0.064 in	1.63 mm
Mill-Max Manufacturing Corp. 2308-1-00-50-00-00-07-0	Tin-Lead	2.39 mm	0.094 in	Swage	Brass Alloy	Single End	Through Hole	0.21 in	5.33 mm	0.054 in	1.37 mm	0.044 in	1.12 mm	0.061 in	1.55 mm	0.061 in	1.55 mm	0.031 in	0.79 mm	Non-Insulated	Double	3.96 mm	0.156 in	300 µin	7.62 µm	0.064 in	1.63 mm
Mill-Max Manufacturing Corp. 2308-1-00-80-00-00-07-0	Tin	2.39 mm	0.094 in	Swage	Brass Alloy	Single End	Through Hole	0.21 in	5.33 mm	0.054 in	1.37 mm	0.041 in	1.04 mm	0.061 in	1.55 mm	0.061 in	1.55 mm	0.031 in	0.79 mm	Non-Insulated	Double	3.96 mm	0.156 in	200 Áin	5.08 Ám	0.064 in	1.63 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Turret Connector Single End 0.156" (3.96mm) Tin-Lead
