STM037M5PQ

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-TYPE RCPT 37POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-TYPE RCPT 37POS VERT SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

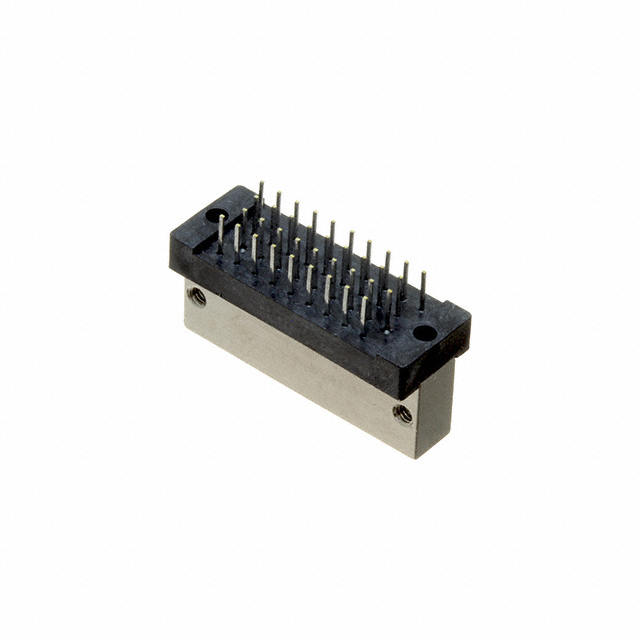

37 Position D-Type, Nano-D Receptacle, Female Sockets Connector

Technical documentation and resources

Specification	STM037M5PQ	STM03 Series

	-	-
Connector Style	D-Type, Nano-D	D-Type, Nano-D
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Tin-Lead	Tin-Lead
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Flange Feature	Female Screwlock, Mating Side	Female Screwlock, Mating Side
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	37	37
Number of Rows	2	2
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)
Termination	Solder	Solder

Part	Connector Style	Shell Size, Connector Layout	Number of Rows	Number of Positions	Contact Material	Contact Type	Connector Type	Dielectric Material	Termination	Mounting Type	Flange Feature	Contact Finish	Shell Material, Finish
TE Connectivity Aerospace, Defense and Marine STM037C6N	D-Type, Nano-D	4 (DC, C)	2	37	Brass	Signal	Male Pins, Plug	Liquid Crystal Polymer (LCP)	Solder	Through Hole, Right Angle
TE Connectivity Aerospace, Defense and Marine STM037L82HN
TE Connectivity Aerospace, Defense and Marine STM037C51Q
TE Connectivity Aerospace, Defense and Marine STM03711500SCQ
TE Connectivity Aerospace, Defense and Marine STM037M5PQ	D-Type, Nano-D	4 (DC, C)	2	37	Brass	Signal	Receptacle, Female Sockets	Liquid Crystal Polymer (LCP)	Solder	Through Hole	Female Screwlock, Mating Side	Tin-Lead	Aluminum, Electroless, Nickel Plated
