7291-6SG-300
ActiveConxall/Switchcraft

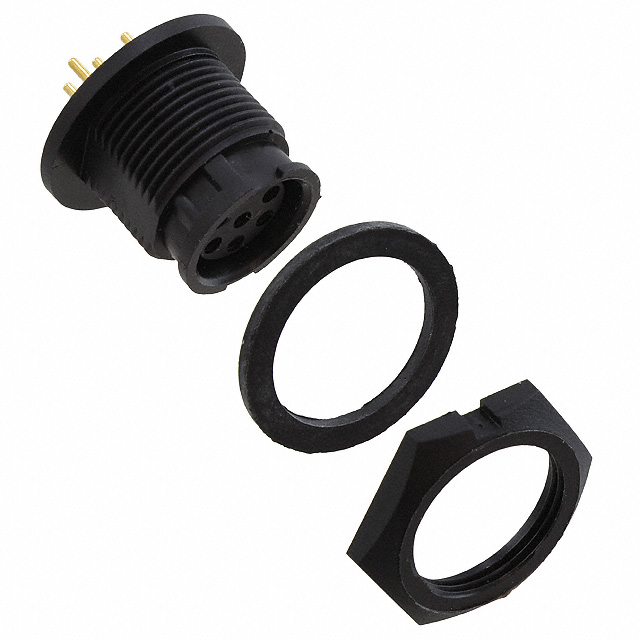

CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7291-6SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7291-6SG-300 | 7291-6SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
7291-6SG Series
CONN RCPT FMALE 6POS GOLD SOLDER
| Part | Mounting Feature | Number of Positions | Contact Material | Current Rating (Amps) | Applications | Termination | Voltage Rating | Contact Finish - Mating | Backshell Material, Plating | Fastening Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Mounting Type | Color | Shielding | Connector Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7291-6SG-3ES | Bulkhead - Front Side Nut | 6 | Brass | Varies by Wire Gauge | Automotive, Communication Systems, Instrumentation | Solder | 600 V | Gold | Nylon, Polyamide (PA) | Bayonet Lock | Plastic | -40 °C | 115 °C | Keyed | Panel Mount, Through Hole | Black | Unshielded | Receptacle, Female Sockets | Weathertight |
Conxall/Switchcraft 7291-6SG-300 | Bulkhead - Front Side Nut | 6 | Brass | Varies by Wire Gauge | Automotive, Communication Systems, Instrumentation | Solder | 600 V | Gold | Nylon, Polyamide (PA) | Bayonet Lock | Plastic | -40 °C | 115 °C | Keyed | Panel Mount, Through Hole | Black | Unshielded | Receptacle, Female Sockets | Weathertight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.12 | |
| 10 | $ 7.78 | |||
| 25 | $ 7.03 | |||
| 50 | $ 6.71 | |||
Description
General part information
7291-6SG Series
6 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
