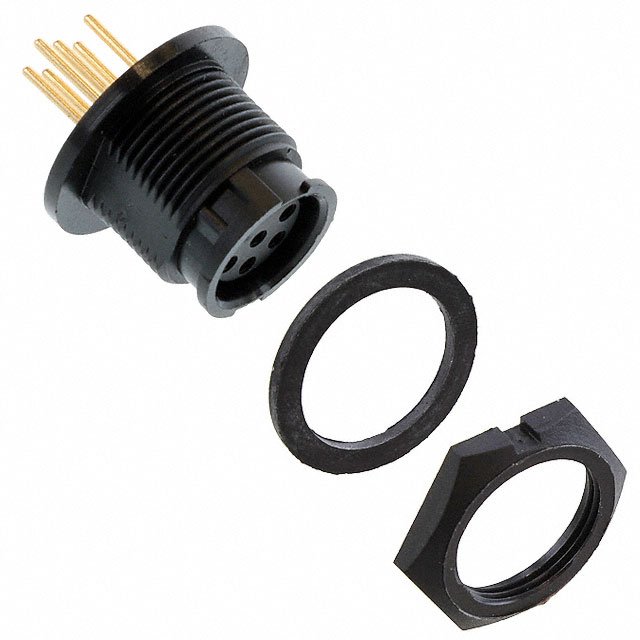

7291-6SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	7291-6SG-3ES	7291-6SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Mounting Feature	Number of Positions	Contact Material	Current Rating (Amps)	Applications	Termination	Voltage Rating	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Type	Color	Shielding	Connector Type	Ingress Protection
Conxall/Switchcraft 7291-6SG-3ES	Bulkhead - Front Side Nut	6	Brass	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Solder	600 V	Gold	Nylon, Polyamide (PA)	Bayonet Lock	Plastic	-40 °C	115 °C	Keyed	Panel Mount, Through Hole	Black	Unshielded	Receptacle, Female Sockets	Weathertight
Conxall/Switchcraft 7291-6SG-300	Bulkhead - Front Side Nut	6	Brass	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Solder	600 V	Gold	Nylon, Polyamide (PA)	Bayonet Lock	Plastic	-40 °C	115 °C	Keyed	Panel Mount, Through Hole	Black	Unshielded	Receptacle, Female Sockets	Weathertight
