MJ1-3510-SMT-TR - MJ1-3510-SMT

MJ1-3510-SMT-TR

Active
CUI Devices

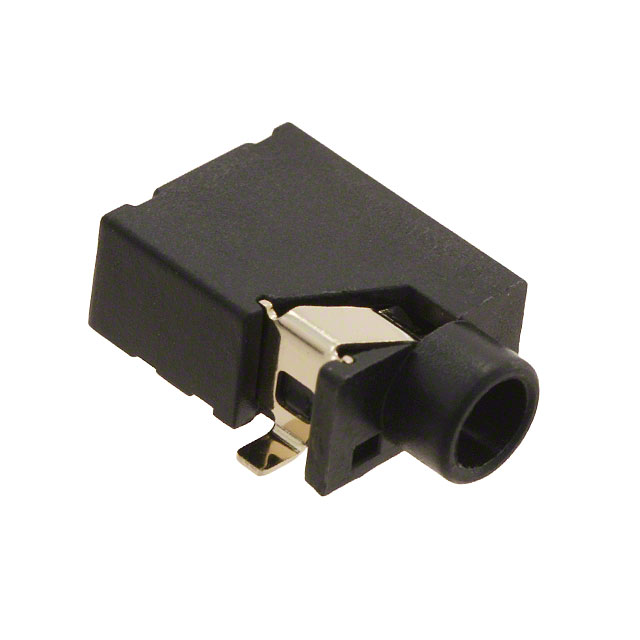

CONN 3.5MM MONO JACK RCP 2 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MJ1-3510-SMT-TR - MJ1-3510-SMT

MJ1-3510-SMT-TR

Active
CUI Devices

CONN 3.5MM MONO JACK RCP 2 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMJ1-3510-SMT-TR
Actual Diameter [diameter]0.142 in
Actual Diameter [diameter]3.6 mm
Body ColorBlack
Connector TypePhone Jack
Contact MaterialCopper Alloy, Brass
Contact Material - Plating [custom]Gold
Current Rating (Amps)300 mA
FeaturesBoard Guide
GenderFemale
Housing MaterialPolyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter0.141 "
Industry Recognized Mating Diameter0.125 "
Industry Recognized Mating Diameter3.5 mm
Internal Switch(s)Single Switch
Mounting TypeSurface Mount, Right Angle
Number of Positions/Contacts3 Conductors, 2 Conductors
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
ShieldingUnshielded
Signal LinesMono
TerminationSolder
Voltage - Rated16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.27
10$ 1.10
25$ 1.05
50$ 1.03
100$ 0.98
250$ 0.89
Digi-Reel® 1$ 1.27
10$ 1.10
25$ 1.05
50$ 1.03
100$ 0.98
250$ 0.89
Tape & Reel (TR) 800$ 0.94
1600$ 0.80
2400$ 0.77
5600$ 0.73
8000$ 0.72

Description

General part information

MJ1 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder

Documents

Technical documentation and resources

Datasheet

Datasheet
