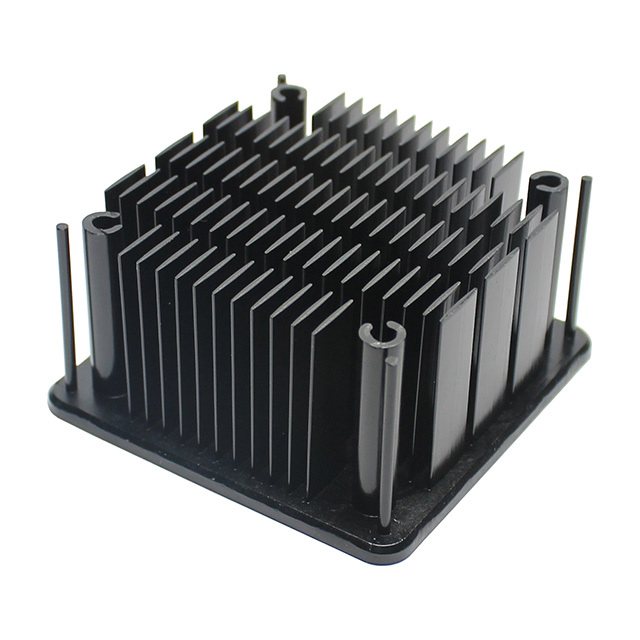

AER55-55-33CB/A01

Active

CTS Thermal Management Products

HEATSINK FORGED BLK ANO TOP MNT

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK FORGED BLK ANO TOP MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AER55-55-33CB/A01	AER55 Series

Attachment Method	Thermal Tape, Adhesive (Included)	Thermal Tape, Adhesive (Included)
Fin Height	1.283 "	0.89 - 1.283 "
Fin Height	32.6 mm	22.61 - 32.6 mm
Fin Height	-	14.6 - 27.6 mm
Fin Height	-	0.575 - 1.087 in
Length [x]	54.6 mm	54.6 mm
Length [x]	2.15 in	2.15 in
Material	Aluminum Alloy	Aluminum Alloy
Material Finish	Black Anodized	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins
Shelf Life	24 Months	24 Months
Thermal Resistance @ Forced Air Flow	1.2 °C/W	1.2 - 200 °C/W
Thermal Resistance @ Natural	5.45 °C/W	5.45 - 8.04 °C/W
Type	Top Mount	Top Mount
Width [x]	2.15 in	2.15 in
Width [x]	54.6 mm	54.6 mm

HEATSINK FORGED BLK ANO TOP MNT

Part	Length [x]	Length [x]	Material	Fin Height [z]	Fin Height [z]	Material Finish	Shelf Life	Shape	Thermal Resistance @ Forced Air Flow	Type	Package Cooled	Width [x]	Width [x]	Thermal Resistance @ Natural	Attachment Method	Fin Height	Fin Height
CTS Thermal Management Products AER55-55-28CB/A01	54.6 mm	2.15 in	Aluminum Alloy	27.6 mm	1.087 in	Black Anodized	24 Months	Fins, Square	1.47 °C/W	Top Mount	ASIC, BGA, CPU, LGA	2.15 in	54.6 mm	6.04 °C/W	Thermal Tape, Adhesive (Included)
CTS Thermal Management Products AER55-55-15CB/A01	54.6 mm	2.15 in	Aluminum Alloy	14.6 mm	0.575 in	Black Anodized	24 Months	Fins, Square	2.28 °C/W, 200 LFM	Top Mount	ASIC, BGA, CPU, LGA	2.15 in	54.6 mm	7.56 °C/W	Thermal Tape, Adhesive (Included)
CTS Thermal Management Products AER55-55-33CB/A01	54.6 mm	2.15 in	Aluminum Alloy			Black Anodized	24 Months	Fins, Square	1.2 °C/W	Top Mount	ASIC, BGA, CPU, LGA	2.15 in	54.6 mm	5.45 °C/W	Thermal Tape, Adhesive (Included)	1.283 "	32.6 mm
CTS Thermal Management Products AER55-55-23CB/A01	54.6 mm	2.15 in	Aluminum Alloy			Black Anodized	24 Months	Fins, Square	1.67 °C/W, 200 LFM	Top Mount	ASIC, BGA, CPU, LGA	2.15 in	54.6 mm		Thermal Tape, Adhesive (Included)	0.89 in	22.61 mm
CTS Thermal Management Products AER55-55-12CB/A01	54.6 mm	2.15 in	Aluminum Alloy			Black Anodized	24 Months	Fins, Square	2.57 °C/W	Top Mount	ASIC, BGA, CPU, LGA	2.15 in	54.6 mm	8.04 °C/W	Thermal Tape, Adhesive (Included)
