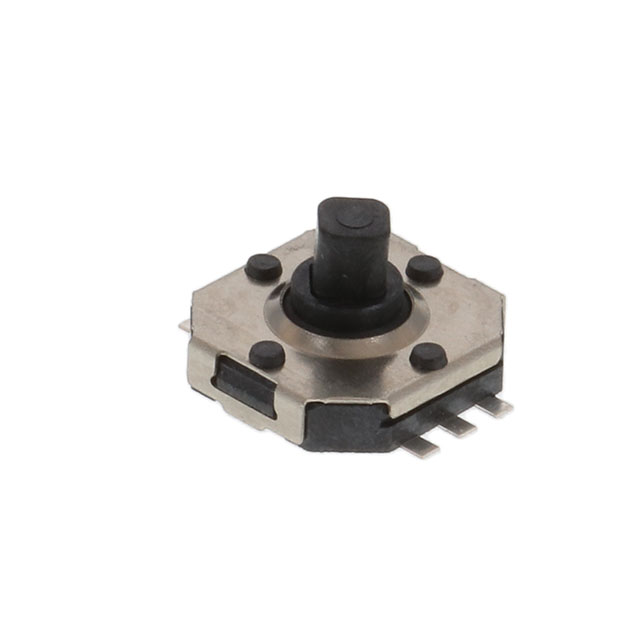

JS1400BFQ

Active

E-Switch

JOYSTICK; NO X5; POS: 5; 0.05A/12VDC; SMT; NONE; 3.53N; PITCH: 1.4MM

Search across all available documentation for this part.

Active

E-Switch

JOYSTICK; NO X5; POS: 5; 0.05A/12VDC; SMT; NONE; 3.53N; PITCH: 1.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	JS1400BFQ

Actuator Type	Plunger for Cap
Current Rating (Amps)	50 mA
Electrical Life	100000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force [Max]	360 gf
Operating Force [Min]	160 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	Digital (Mechanical Switch)
Switch Function	4-Way Directional, Center Select
Termination Style	Gull Wing
Type	2 Axis
Type	Navigation Switch
Voltage Rating - DC	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Voltage Rating - DC	Actuator Type	Mechanical Life	Output	Mounting Type	Current Rating (Amps)	Switch Function	Operating Force [Max]	Operating Force [Min]	Electrical Life	Termination Style
E-Switch JS1400BFQ	-20 C	70 °C	2 Axis	Navigation Switch	12 V	Plunger for Cap	100000 Cycles	Digital (Mechanical Switch)	Surface Mount	50 mA	4-Way Directional Center Select	360 gf	160 gf	100000 Cycles	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
