K50PTAMRGB14Q

Active

BANNER ENGINEERING

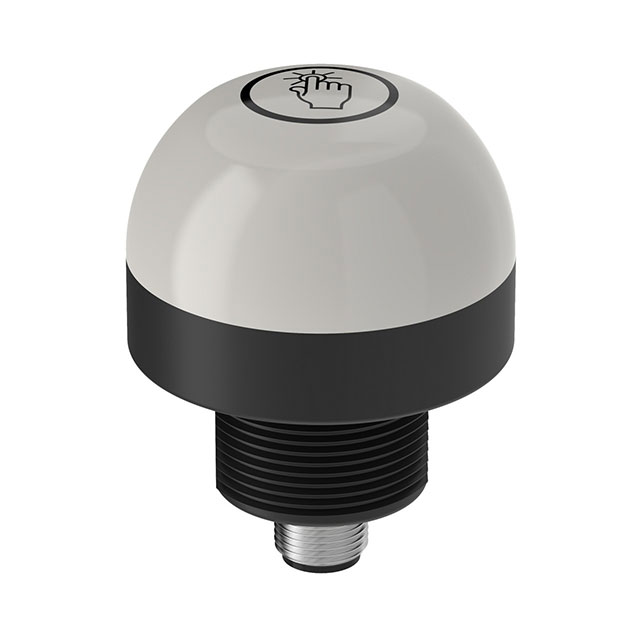

K50 PRO TOUCH SERIES: 14-COLOR RGB TOUCH SENSOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

K50 PRO TOUCH SERIES: 14-COLOR RGB TOUCH SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	K50PTAMRGB14Q

Actuator Type	Domed, Round, Button
Approval Agency	cULus, CE
Circuit	SPST-NO
Illumination Type, Color	Red, LED, Blue, Green
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Response Time	300 ms
Switch Function	Off-Mom
Termination Style	Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Circuit	Switch Function	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Actuator Type	Ingress Protection	Approval Agency	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Panel Cutout Dimensions [diameter]	Termination Style
BANNER ENGINEERING K50PTAMRGB14Q	SPST-NO	Off-Mom	Blue Green LED Red	-40 °C	50 °C	300 ms	Button Domed Round	IP67 IP69K	CE cULus	12 V	30 VDC	Panel Mount Front	30 mm	Connector (M12)
BANNER ENGINEERING K50PTAMRGB14QP	SPST-NO	Off-Mom	Blue Green LED Red	-40 °C	50 °C	300 ms	Button Domed Round	IP67 IP69K	CE cULus	12 V	30 VDC	Panel Mount Front	30 mm	Cable with Connector (M12)
BANNER ENGINEERING K50PTAMRGB14	SPST-NO	Off-Mom	Blue Green LED Red	-40 °C	50 °C	300 ms	Button Domed Round	IP67 IP69K	CE cULus	12 V	30 VDC	Panel Mount Front	30 mm	Cable Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 188.00
Newark	Each	1	$ 188.00

General part information

K50 PRO TOUCH SERIES: 14-COLOR RGB TOUCH SENSOR
