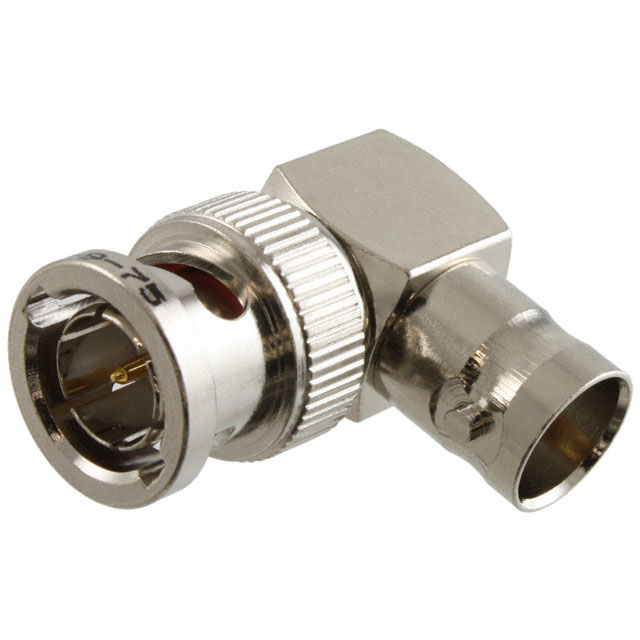

031-9-75

Active

Amphenol RF

CONN BNC ADAPTER 0HZ TO 4GHZ 75OHM RA RCP/PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC ADAPTER 0HZ TO 4GHZ 75OHM RA RCP/PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	031-9-75

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Adapter Series	Impedance	Style	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Center Contact Material	Convert To (Adapter End)	Center Contact Plating	Body Material	Body Finish	Frequency - Max [Max]	Convert From (Adapter End)	Dielectric Material	Conversion Type
Amphenol RF 031-9-75	BNC to BNC	75 Ohms	Right Angle	Plug to Jack	-65 ░C	165 °C	Bayonet Lock	Free Hanging (In-Line) Right Angle	Brass Phosphor Bronze	BNC Plug Male Pin	Gold	Brass	Nickel	4 GHz	BNC Jack Female Socket	Polytetrafluoroethylene (PTFE)	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 75 Ohms
