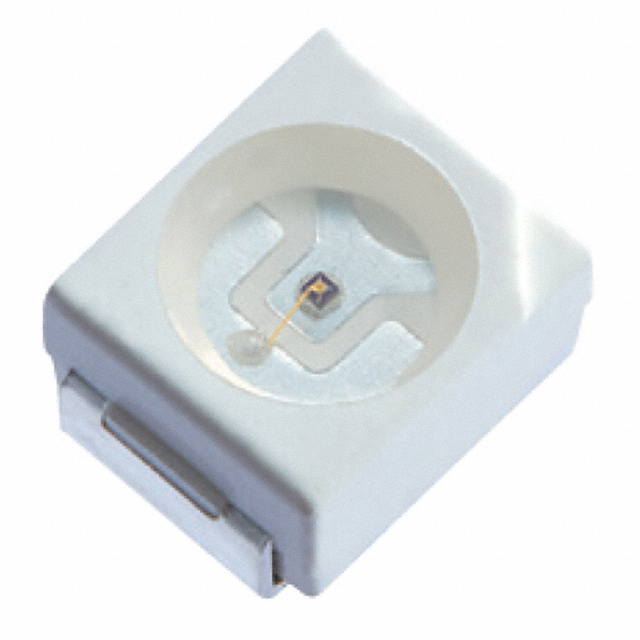

XZTNI45S
ActiveSunLED
EMITTER IR 940NM 50MA PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZTNI45S
ActiveSunLED
EMITTER IR 940NM 50MA PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZTNI45S |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-PLCC |
| Radiant Intensity (Ie) Min @ If [Min] | 1.2 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.13 | |
| 6000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
Description
General part information
XZTNI45 Series
Infrared (IR) Emitter 940nm 1.2V 50mA 1.2mW/sr @ 20mA 120° 2-PLCC
