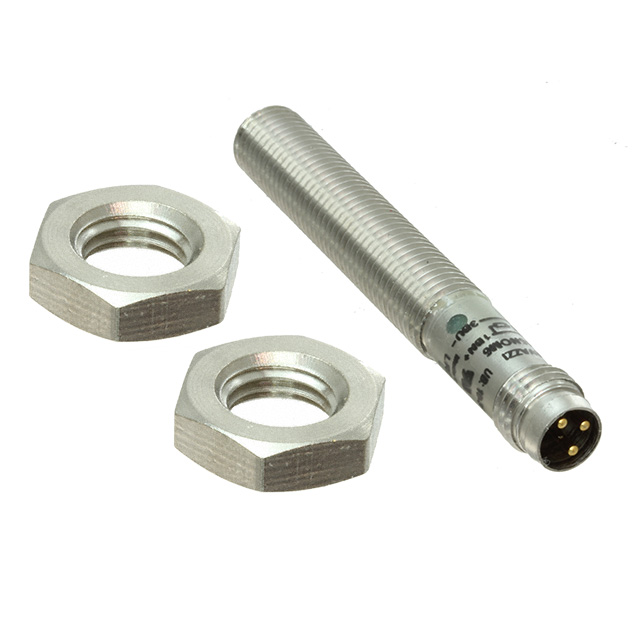

IA08BLF15NOM5
ObsoleteCARLO GAVAZZI
SENSOR PROX INDUCTIVE 1.5MM CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IA08BLF15NOM5
ObsoleteCARLO GAVAZZI
SENSOR PROX INDUCTIVE 1.5MM CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IA08BLF15NOM5 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 13, NEMA 1, IP67, NEMA 4, NEMA 3, NEMA 6 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Response Frequency | 2 kHz |
| Sensing Distance | 1.5 mm |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 165.30 | |
| 10 | $ 136.80 | |||
Description
General part information
IA08BLF15 Series
SENSOR PROX INDUCTIVE 1.5MM CYL
