010440WF162

Active

Essentra Components

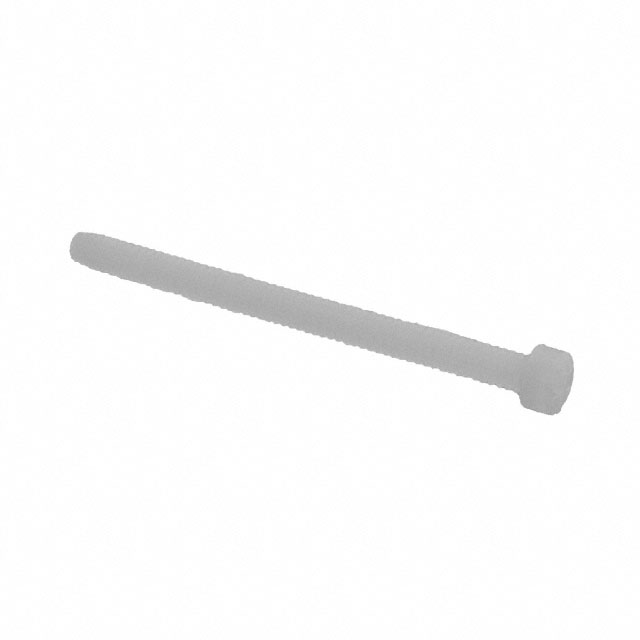

FILLISTER PHILLIPS SCREW 4-40 TH

Search across all available documentation for this part.

Active

Essentra Components

FILLISTER PHILLIPS SCREW 4-40 TH

Technical Specifications

Parameters and characteristics commom to parts in this series

FILLISTER PHILLIPS SCREW 4-40 TH

Part	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Material	Type	Screw Head Type	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]	Head Height	Head Height
Essentra Components 010440WF050	#4-40	17.65 mm	0.695 "	Phillips	Nylon	Machine Screw	Pan Head	12.7 mm	1/2	0.5 in
Essentra Components 010440WF162	#4-40	46.23 mm	1.82 in	Phillips	Nylon	Machine Screw	Pan Head
Essentra Components 010440WF087	#4-40	27.18 mm	1.07 in	Phillips	Nylon	Machine Screw	Pan Head	0.875 in			22.23 mm	0.875 in
Essentra Components 010440WF018	#4-40			Phillips	Nylon	Machine Screw	Pan Head
Essentra Components 010440WF112	#4-40	33.53 mm	1.32 in	Phillips	Nylon	Machine Screw	Pan Head					1.125 in	28.58 mm	4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF009	#4-40			Phillips	Nylon	Machine Screw	Pan Head							4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF037	#4-40	14.48 mm	0.57 in	Phillips	Nylon	Machine Screw	Pan Head	0.375 "		0.375 "	9.53 mm
Essentra Components 010440WF068	#4-40			Phillips	Nylon	Machine Screw	Pan Head	17.46 mm				0.688 "		4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF062	#4-40	20.83 mm	0.82 in	Phillips	Nylon	Machine Screw	Pan Head	15.88 mm		0.625 in	0.625 in
Essentra Components 010440WF118	#4-40			Phillips	Nylon	Machine Screw	Pan Head					1.188 in	30.16 mm	4.43 mm	0.174 in	0.195 in	4.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#4-40 Pan Head Machine Screw Phillips Drive Nylon
