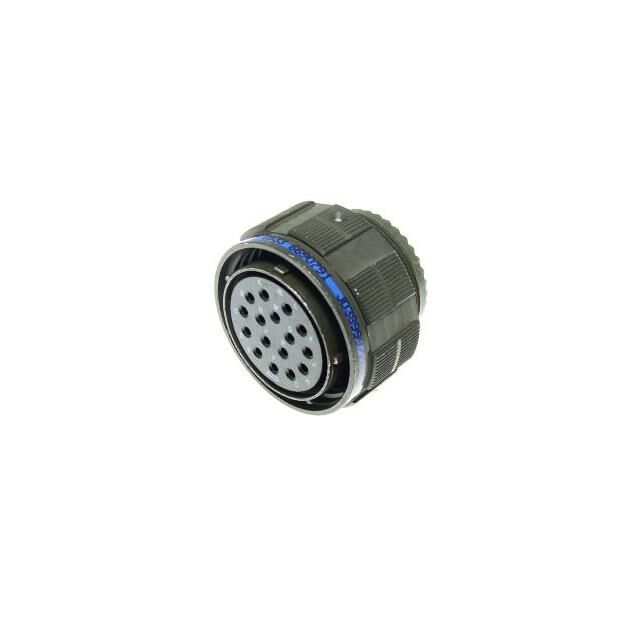

D38999/23NB35SN
ActiveGlenair
CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/23NB35SN
ActiveGlenair
CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/23NB35SN | D38999/23NB Series |
|---|---|---|
| Applications | Military, Medical, Automotive, Aerospace | Aerospace, Military, Medical, Automotive |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper, Copper Alloy |
| Features | Self Locking | Self Locking |
| Grade | Military | Military |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Epoxy, Glass Filled, Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 13 | 6 - 13 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N, A, C, D, B |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 | MIL-DTL-38999 |
| Shell Finish | Nickel | Nickel |
| Shell Material | Stainless Steel | Stainless Steel |
| Shell Size - Insert | 11 | 11 |
| Shell Size, MIL | B | B |
| Termination | - | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4760.03 | |
D38999/23NB Series
CONNECTOR
| Part | Connector Type | Shell Size - Insert | Applications | Orientation | Contact Material | Shell Finish | Primary Material | Qualification | Color | Insert Material | Shell Size, MIL | Grade | Contact Finish - Mating | Shell Material | Mounting Feature | Termination | Number of Positions | Features | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair D38999/23NB35CN | Male Pins, Receptacle | 11 | Aerospace | N | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | Solder | 13 | ||||
Glenair D38999/23NB35SN | Receptacle, Female Sockets | 11 | Aerospace, Automotive, Medical, Military | N | Copper Alloy | Nickel | Metal | MIL-DTL-38999 | Silver | Thermoplastic | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | 13 | Self Locking | IP68 - Dust Tight, Waterproof | -65 ░C | 200 °C | |
Glenair D38999/23NB35DA | Receptacle, Female Sockets | 11 | Aerospace | A | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | Solder | 13 | ||||
Glenair D38999/23NB35SC | Receptacle, Female Sockets | 11 | Aerospace, Automotive, Medical, Military | C | Copper Alloy | Nickel | Metal | MIL-DTL-38999 | Silver | Thermoplastic | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | 13 | Self Locking | IP68 - Dust Tight, Waterproof | -65 ░C | 200 °C | |
Glenair D38999/23NB35DD | Receptacle, Female Sockets | 11 | Aerospace | D | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | Solder | 13 | ||||
Glenair D38999/23NB35PB | Male Pins, Receptacle | 11 | Aerospace | B | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | 13 | |||||
Glenair D38999/23NB35SB | Receptacle, Female Sockets | 11 | Aerospace | B | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | 13 | |||||
Glenair D38999/23NB35PC | Male Pins, Receptacle | 11 | Aerospace | C | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | 13 | |||||
Glenair D38999/23NB5SN | Receptacle, Female Sockets | 11 | Aerospace | N | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | ||||||
Glenair D38999/23NB35DN | Receptacle, Female Sockets | 11 | Aerospace | N | Copper | Nickel | Metal | MIL-DTL-38999 | Silver | Epoxy, Glass Filled | B | Military | Gold | Stainless Steel | Bulkhead - Front Side Nut | Solder | 13 |
Description
General part information
D38999/23NB Series
13 Position Circular Connector Receptacle, Female Sockets Solder Cup
