741W-J/02
ActiveQualtek

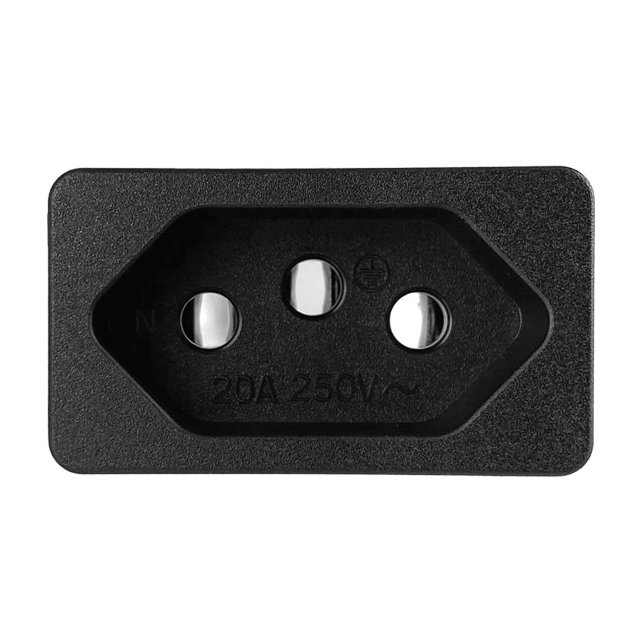

SNAP-IN BRAZIL OUTLET RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
741W-J/02
ActiveQualtek
SNAP-IN BRAZIL OUTLET RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 741W-J/02 |
|---|---|
| Approval Agency | TUV |
| Connector Style | NBR 14136 |
| Connector Type | Receptacle, Female Sockets |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 40.5 mm |
| Panel Cutout Dimensions [y] | 21.7 mm |
| Panel Thickness [Max] | 2 mm |
| Panel Thickness [Max] | 0.078 in |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.80 | |
| 10 | $ 3.45 | |||
| 25 | $ 3.27 | |||
| 50 | $ 3.19 | |||
| 200 | $ 3.04 | |||
| 400 | $ 2.67 | |||
Description
General part information
741W-J Series
Power Connector Receptacle, Female Sockets NBR 14136 Panel Mount, Snap-In
