SDF-R15-113L461

Active

NorComp Inc.

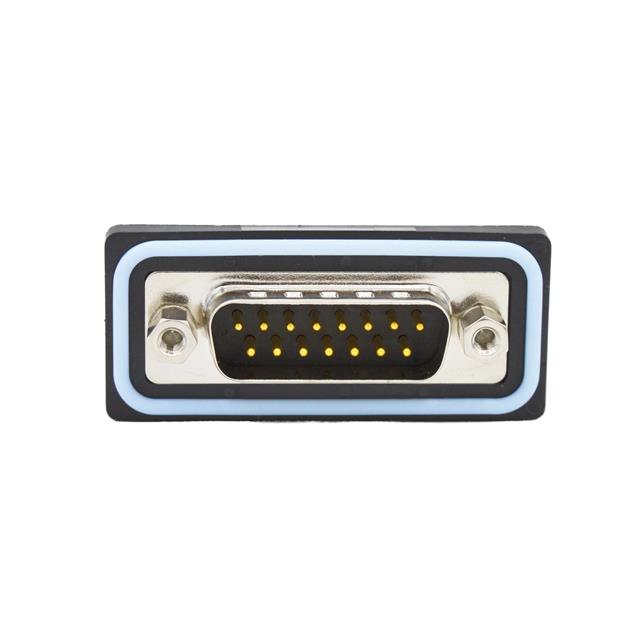

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-R15-113L461

Active

NorComp Inc.

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.56
		10	$ 12.73
		25	$ 11.52
		40	$ 10.95
		80	$ 10.18
		230	$ 9.14
		440	$ 8.58
		945	$ 7.98

Description

General part information

SDF-R15 Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-R15-113L461	SDF-R15 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock	Board Lock, Mounting Brackets, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	15	15
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	2	2
Termination	Solder	Solder

SDF-R15 Series

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Mounting Type	Shell Material, Finish	Ingress Protection	Number of Rows	Current Rating (Amps)	Termination	Material Flammability Rating	Contact Material	Features	Contact Finish	Color	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Positions	Flange Feature	Connector Style	Contact Finish Thickness
NorComp Inc. SDF-R15-213L462	0.76 Ám	30 Áin	Signal	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Board Lock, Mounting Brackets	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub
NorComp Inc. SDF-R15-213L461			Signal	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Board Lock, Mounting Brackets	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub	Flash
NorComp Inc. SDF-R15-113L011			Signal	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Grounding Indents	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub	Flash
NorComp Inc. SDF-R15-113L462	0.76 Ám	30 Áin	Signal	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Board Lock, Grounding Indents, Mounting Brackets	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub
NorComp Inc. SDF-R15-213L012	0.76 Ám	30 Áin	Signal	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass		Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub
NorComp Inc. SDF-R15-213L011			Signal	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass		Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub	Flash
NorComp Inc. SDF-R15-113L461			Signal	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Board Lock, Grounding Indents, Mounting Brackets	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub	Flash
NorComp Inc. SDF-R15-113L012	0.76 Ám	30 Áin	Signal	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	Nickel Plated, Steel	IP67 - Dust Tight, Waterproof	2	5 A	Solder	UL94 V-0	Brass	Grounding Indents	Gold	Black	2	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	15	Female Screwlock (4-40), Mating Side	D-Sub
