45-2T00.20K0.000

Active

EAO

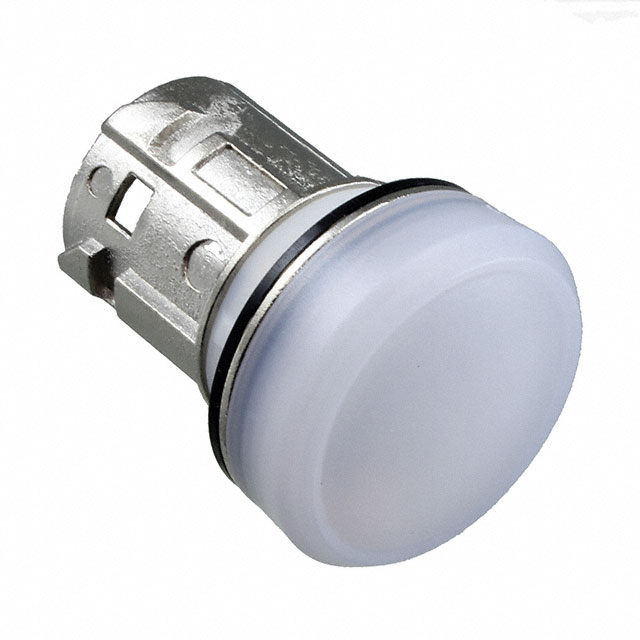

INDICATOR PANEL LED

Search across all available documentation for this part.

Active

EAO

INDICATOR PANEL LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Clear Screw Terminal

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	45-2T00.20K0.000	45-2T00 Series

Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Lamp Color	-	Yellow, Red, Green, White, Blue, Amber
Lens Color	Colorless	Yellow, Red, Green, Colorless, White, Blue, Amber
Lens Size [diameter]	29.5 mm	29.5 mm
Lens Transparency	Clear	Clear
Panel Cutout Dimensions	0.88 in	0.88 in
Panel Cutout Dimensions	22.3 mm	22.3 mm
Panel Cutout Shape	Round	Round
Termination Style	Screw Terminal	Screw Terminal
Type	LED	LED

SWITCH ACTUATOR, EAO 45 SERIES INDICATOR SWITCHES, IP66, IP67, IP69K

Part	Termination Style	Lamp Color	Lens Transparency	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Type	Lens Size [diameter]	Ingress Protection
EAO 45-2T00.20G0.000	Screw Terminal	Yellow	Clear	Yellow	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.10E0.000	Screw Terminal	Red	Clear	Red	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20H0.000	Screw Terminal	Green	Clear	Green	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.10H0.000	Screw Terminal	Green	Clear	Green	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20E0.000	Screw Terminal	Red	Clear	Red	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20K0.000	Screw Terminal		Clear	Colorless	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20N0.000	Screw Terminal	White	Clear	White	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20J0.000	Screw Terminal	Blue	Clear	Blue	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.20F0.000	Screw Terminal	Amber	Clear	Amber	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
EAO 45-2T00.10N0.000	Screw Terminal	White	Clear	White	0.88 in	22.3 mm	Round	LED	29.5 mm	IP66, IP67, IP69K
