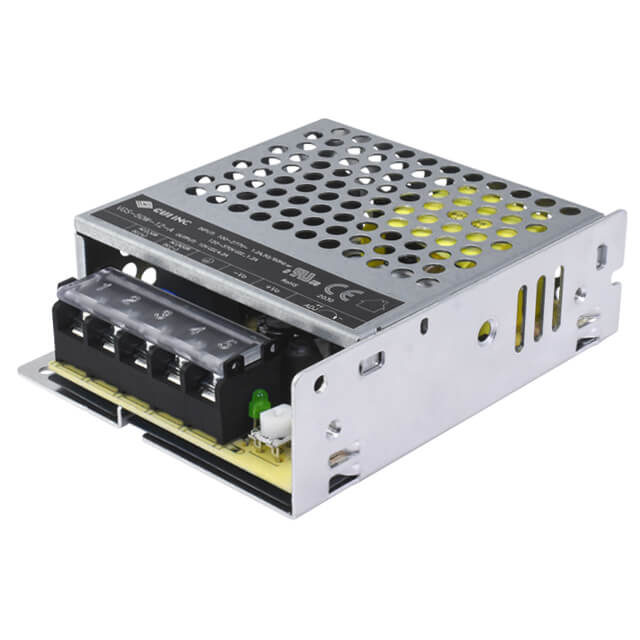

Specification	VGS-50W-5-A

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE
Current - Output 1	10 A
Efficiency	83 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	50 W
Size / Dimension Height	1.18 in
Size / Dimension Length	3.9 in
Size / Dimension Width	3.23 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	305 VAC
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	430 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	5 V

VGS-50W Series

Part	Voltage - Output 1	Current - Output 1	Voltage - Isolation	Number of Outputs	Mounting Type	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (DC) Maximum	Applications	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Type	Approval Agency	Power (Watts)	Standard Number
CUI Inc. VGS-50W-36-A	36 V	1.45 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	89 %	70 °C	-30 °C	Enclosed	CE cURus	52 W	60335-1 62368-1
CUI Inc. VGS-50W-12	12 V	4.2 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	86 %	70 °C	-30 °C	Enclosed	CE cURus	50 W	60335-1 62368-1
CUI Inc. VGS-50W-36	36 V	1.45 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	89 %	70 °C	-30 °C	Enclosed	CE cURus	52 W	60335-1 62368-1
CUI Inc. VGS-50W-12-B	12 V	4.2 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	86 %	70 °C	-30 °C	Conformal Coated Enclosed	CE cURus	50 W	60335-1 62368-1
CUI Inc. VGS-50W-5-A	5 V	10 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	83 %	70 °C	-30 °C	Enclosed	CE cURus	50 W	60335-1 62368-1
CUI Inc. VGS-50W-12-A	12 V	4.2 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	86 %	70 °C	-30 °C	Enclosed	CE cURus	50 W	60335-1 62368-1
CUI Inc. VGS-50W-24	24 V	2.2 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	88 %	70 °C	-30 °C	Enclosed	CE cURus	52 W	60335-1 62368-1
CUI Inc. VGS-50W-5-B	5 V	10 A	4000 Vpk	1	Chassis Mount	1.18 in	3.9 in	3.23 in	305 VAC	85 VAC	120 V	430 V	Household Appliances ITE (Commercial)	83 %	70 °C	-30 °C	Conformal Coated Enclosed	CE cURus	50 W	60335-1 62368-1
