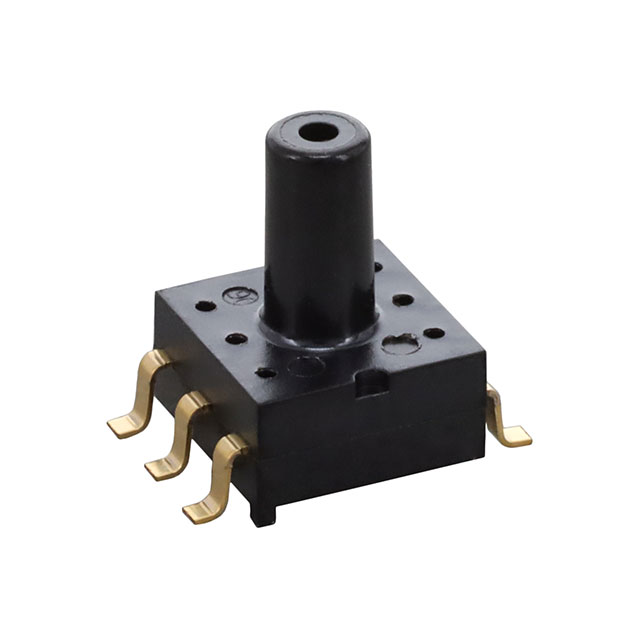

BLCR-L01D-U2

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.12" .008V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.12" .008V

Technical Specifications

Parameters and characteristics for this part

SENSOR 0.04PSIG 0.12" .008V

Part	Applications	Port Style	Accuracy	Termination Style	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Output Type	Output [Max]	Output [Min]	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure	Operating Pressure	Mounting Type
Amphenol All Sensors Corporation BLCR-L01D-U2	Board Mount	Barbless	0.5 %	Gull Wing	25 kPa	3.63 PSI	Male - Tube	0.12 ", 3 mm	Analog Voltage	8 mV	0 mV	Gauge	3.3 V	1.8 V	6-SMD, Gull Wing, Top Port	-25 °C	85 °C	0.04 PSI	0.25 kPa	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±0.04PSI (±0.25kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 8 mV 6-SMD, Gull Wing, Top Port
