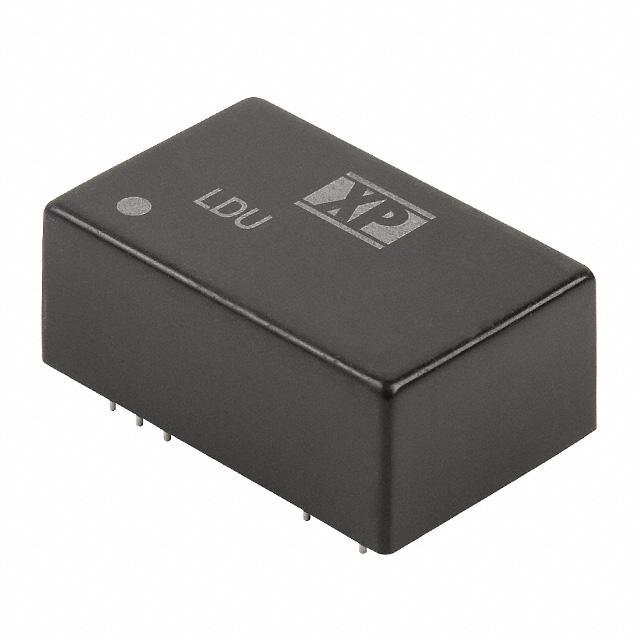

LDU5660S500

Obsolete

XP POWER

LED DRIVER CC BUCK 2-56V 500MA

Search across all available documentation for this part.

Obsolete

XP POWER

LED DRIVER CC BUCK 2-56V 500MA

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Approval Agency	Features	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Dimming	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Type	Weight	Weight	Termination Style
XP POWER LDU5660S1000	50 W	EN	Remote On/Off SCP	23-DIP Module 9 Leads	9 V	Through Hole	60 V	1	1 A	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	-40 °C	70 °C	Buck	PWM	97 %	2 V	56 V	Constant Current	0.039 lb	17.69 g
XP POWER LDU5660S700-WD	39 W	EN	Remote On/Off SCP		9 V	Chassis Mount	60 V	1	700 mA	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	-40 °C	70 °C	Buck	PWM	97 %	2 V	56 V	Constant Current	0.049 lb	22.23 g	Wire Leads
XP POWER LDU5660S500	28 W	EN	Remote On/Off SCP	23-DIP Module 9 Leads	9 V	Through Hole	60 V	1	500 mA	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	-40 °C	70 °C	Buck	PWM	97 %	2 V	56 V	Constant Current	0.039 lb	17.69 g
XP POWER LDU5660S500-WD	28 W	EN	Remote On/Off SCP		9 V	Chassis Mount	60 V	1	500 mA	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	-40 °C	70 °C	Buck	PWM	97 %	2 V	56 V	Constant Current	0.049 lb	22.23 g	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.00

General part information

500mA 2 ~ 56V Constant Current LED Driver Buck Topology 1 Output
