ES-2200-T312-020C

Active

TE Connectivity Raychem Cable Protection

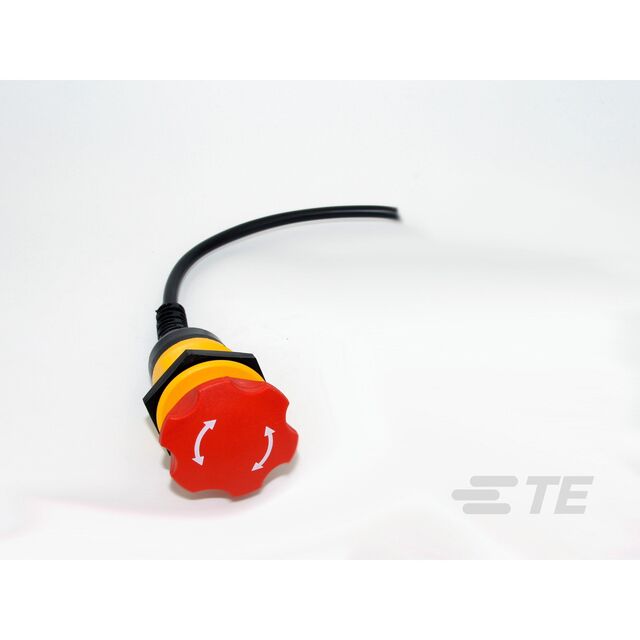

EMERGENCY SWITCH ES-2200-T312-020C

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

EMERGENCY SWITCH ES-2200-T312-020C

Technical Specifications

Parameters and characteristics for this part

Specification	ES-2200-T312-020C

Circuit	DPDT
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30.5 mm
Reset Operation	Twist
Switch Function	On-On
Voltage Rating - DC	32 V

Part	Voltage Rating - DC	Circuit	Current Rating (Amps)	Switch Function	Termination Style	Ingress Protection	Mounting Type	Panel Cutout Dimensions [diameter]	Reset Operation	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection ES-2012-T111	32 V	3PST-2NC/1NO	10 A	Off-On On-Off	Connector	IP67 IP69K	Panel Mount Front	30.5 mm	Twist	85 °C	-40 °C
TE Connectivity Raychem Cable Protection ES-2101-T422-020C 912	32 V	3PST-NO	10 A	Off-On	Wire Leads	IP67 IP69K	Panel Mount Front	30.5 mm	Twist	85 °C	-40 °C
TE Connectivity Raychem Cable Protection ES-2003-T111	32 V	3PST-NC	10 A	On-Off	Connector	IP67 IP69K	Panel Mount Front	30.5 mm	Twist	85 °C	-40 °C
TE Connectivity Raychem Cable Protection ES-2200-T312-020C	32 V	DPDT	10 A	On-On		IP67 IP69K	Panel Mount Front	30.5 mm	Twist	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 117.83

General part information

Emergency Stop Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, Process Sealed, KISSLING Series ES
