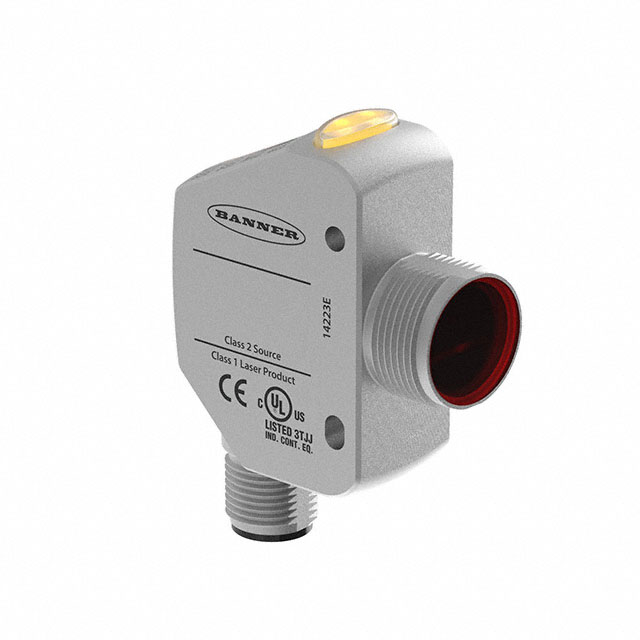

Q4XTBLAF100-Q8

Active

BANNER ENGINEERING

PHOTO SENSOR, 100 MM, NPN / PNP, BACKGROUND/FOREGROUND SUPPRESSION, 30 V, M12 CONNECTOR, Q4X SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SENSOR, 100 MM, NPN / PNP, BACKGROUND/FOREGROUND SUPPRESSION, 30 V, M12 CONNECTOR, Q4X SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	Q4XTBLAF100-Q8

Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Sensing Distance [Max]	100 mm
Sensing Distance [Max]	3.94 "
Sensing Distance [Min]	30 mm
Sensing Distance [Min]	0.98 "
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]
BANNER ENGINEERING Q4XTBLAF500-Q8	30 VDC	10 VDC	-10 °C	50 °C	500 mm	0.98 "	30 mm	19.69 in
BANNER ENGINEERING Q4XTBLAF100-Q8	30 VDC	10 VDC	-10 °C	50 °C	100 mm	0.98 "	30 mm		3.94 "
BANNER ENGINEERING Q4XTBLAF300-Q8	30 VDC	10 VDC	-10 °C	50 °C	300 mm	0.98 "	30 mm	11.81 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 433.00
Newark	Each	1	$ 421.31

General part information

Optical Sensor 0.98" ~ 3.94" (3 ~ 10cm) Output
