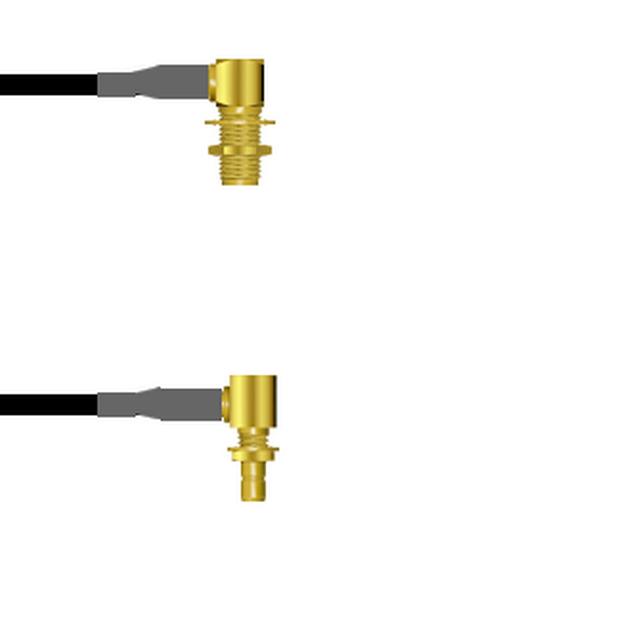

Q-2P03H0003003M

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P03H0003003M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Connector Mounting Feature	Overall Impedance	Features	1st Contact Gender	Cable Type	2nd Connector Mounting Type	2nd Connector	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	Connector Impedance	Cable Impedance	1st Connector	Style	Color
Amphenol Custom Cable Q-2P03H0003003M	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Shielded	Female	RG-174	Panel Mount	SMB Jack Right Angle	3 m	118.1 in	9.8 '	1 GHz	Male	50 Ohms	50 Ohms	Right Angle SMA Jack	SMA to SMB	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-174 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
