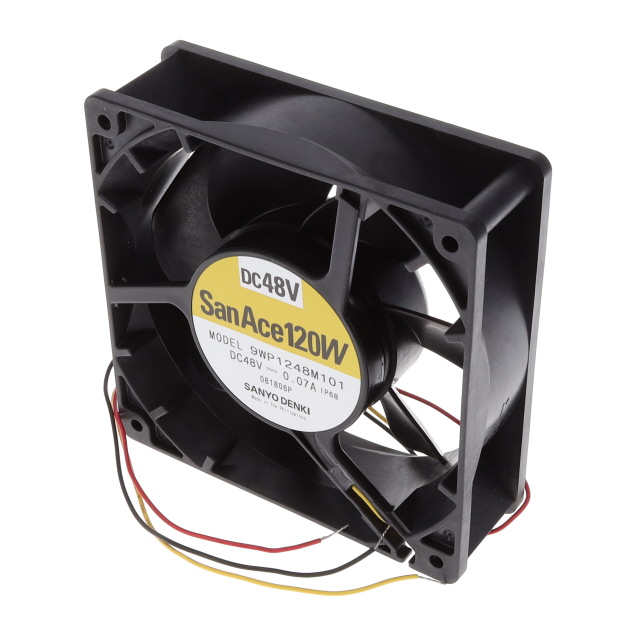

9WP1248M101

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

9WP1248M101

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WP1248M101	9WP1248 Series

Air Flow	-	99 CFM
Air Flow	-	2.77 mł/min
Approval Agency	-	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	110 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection, Locked Rotor Sensor
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	-	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	39 dB(A)
Operating Temperature	-	-20 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-20 C
Operating Temperature	-	70 °C
Power (Watts)	3.36 W	3.36 - 5.28 W
RPM	-	2600 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	-	70.5 Pa
Static Pressure	-	0.283 in H2O
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range	-	55.2 VDC
Voltage Range	-	40.8 VDC
Weight	-	360.15 g
Weight	-	0.794 lb
Width [y]	38 mm	38 mm

9WP1248 Series

FAN AXIAL 120X38MM 48VDC WIRE

Part	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated [custom]	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Fan Type	RPM	Termination	Size / Dimension [y]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Power (Watts)	Width [y]	Material - Frame	Noise	Features	Air Flow	Air Flow
Sanyo Denki America Inc. 9WP1248H102	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	2 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)
Sanyo Denki America Inc. 9WP1248M101				48 VDC			Ball	Plastic			Tubeaxial		3 Wire Leads	120 mm	120 mm							IP68 - Dust Tight, Waterproof	3.36 W	38 mm	Plastic		Locked Rotor Protection, Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248H101	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	3 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248M1021				48 VDC			Ball	Plastic			Tubeaxial		2 Wire Leads	120 mm	120 mm							IP68 - Dust Tight, Waterproof	3.36 W	38 mm	Plastic
Sanyo Denki America Inc. 9WP1248M1011				48 VDC			Ball	Plastic			Tubeaxial		3 Wire Leads	120 mm	120 mm							IP68 - Dust Tight, Waterproof	3.36 W	38 mm	Plastic		Locked Rotor Protection, Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248H1D011	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	3 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP1248H1011	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	3 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)	Speed Sensor (Tach)	99 CFM	2.77 mł/min
Sanyo Denki America Inc. 9WP1248H1D01	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	3 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP1248H1021	70.5 Pa	0.283 in H2O	CSA, TUV, UL	48 VDC	55.2 VDC	40.8 VDC	Ball	Plastic	110 mA	40000 Hrs	Tubeaxial	2600 RPM	2 Wire Leads	120 mm	120 mm	360.15 g	0.794 lb	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	5.28 W	38 mm	Plastic	39 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.25
