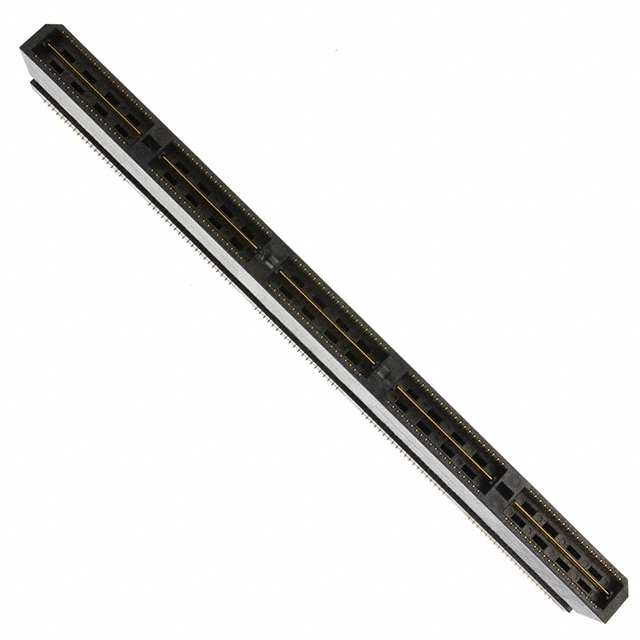

QTE-100-04-L-D-A

Active

Samtec Inc.

CONN HDR 200POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 200POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	QTE-100-04-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	0.6 in
Height Above Board	15.24 mm
Mated Stacking Heights	16 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish
Samtec Inc. QTE-100-02-L-D-A	Surface Mount	0.8 mm	0.031 in	8 mm	Header Outer Shroud Contacts	2	10 Áin	0.25 Ám	7.26 mm	0.286 "	Gold
Samtec Inc. QTE-100-04-L-D-A	Surface Mount	0.8 mm	0.031 in	16 mm	Header Outer Shroud Contacts	2	10 Áin	0.25 Ám	15.24 mm	0.6 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

200 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
