42-01034

Active

Amphenol CONEC

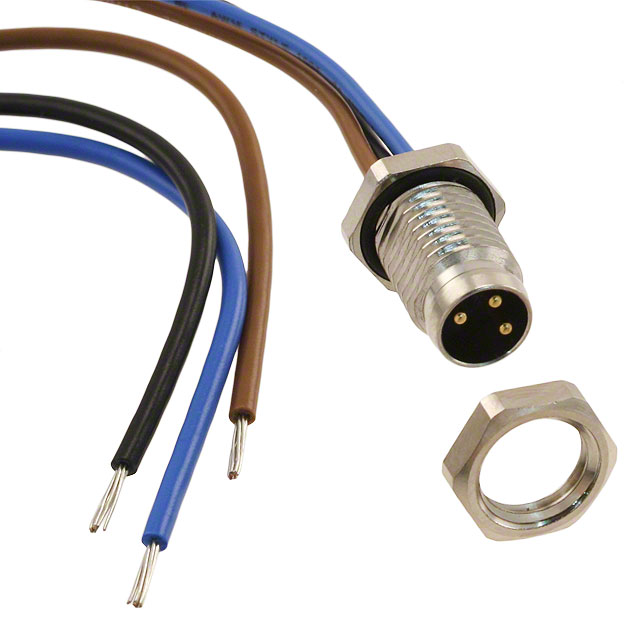

CABLE ASSY, 3P M8 PLUG-FREE END, 200MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

CABLE ASSY, 3P M8 PLUG-FREE END, 200MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	42-01034

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	200 mm
Length [x]	0.66 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Type	2nd Connector Type	1st Connector Orientation	Cable Type	1st Connector Number of Positions	Ingress Protection	1st Connector Gender	Color	Assembly Configuration	Length	Length [x]	Shielding	1st Connector Shell Size - Insert	Usage	1st Connector Number of Positions Loaded	Cable Material	1st Connector Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Material Flammability Rating	Termination	Current Rating (Amps)	Number of Positions	Shell Finish	Mounting Type	Shell Size - Insert	Insert Material	Features	Orientation	Voltage Rating	Primary Material	Contact Material	Contact Finish - Mating
Amphenol CONEC 42-01035	Receptacle	Wire Leads	A	Individual	4	IP67 - Dust Tight Waterproof	Male Pins	Multiple	Standard	200 mm	0.66 ft	Unshielded	M8	Industrial Environments	All	Polyvinyl Chloride (PVC)	Panel Mount
Amphenol CONEC 42-01034	Receptacle	Wire Leads	A	Individual	3	IP67 - Dust Tight Waterproof	Male Pins	Multiple	Standard	200 mm	0.66 ft	Unshielded	M8	Industrial Environments	All	Polyvinyl Chloride (PVC)	Panel Mount
Amphenol CONEC 42-01033	Receptacle	Wire Leads	A	Individual	4	IP67 - Dust Tight Waterproof	Male Pins	Multiple	Standard	200 mm	0.66 ft	Unshielded	M8	Industrial Environments	All	Polyvinyl Chloride (PVC)	Panel Mount
Amphenol CONEC 42-01038						IP67 - Dust Tight Waterproof		Silver				Shielded						Receptacle Female Sockets	-30 ░C	85 °C	Copper Zinc	UL94	Solder	3 A	4	Nickel	Panel Mount Through Hole	M8-4	Thermoplastic Polyurethane (TPU)	Board Guide	A	30 VDC	Metal	Copper Zinc	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 0.66' (200.00mm)
