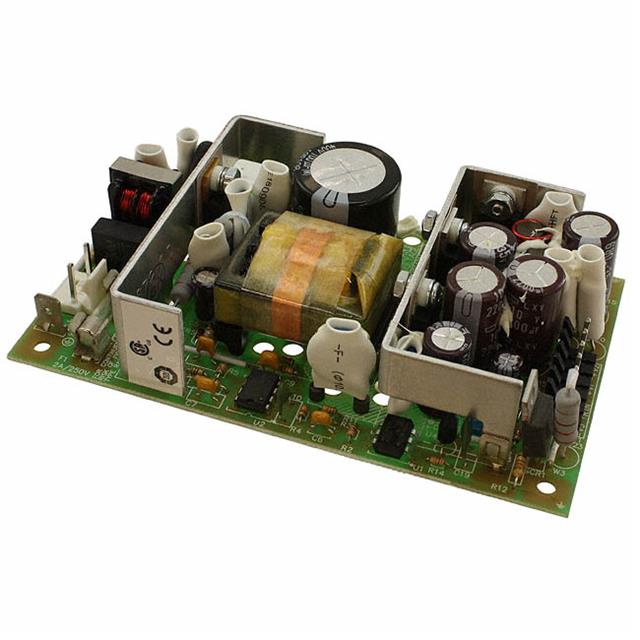

MAP42-1012G

Active

Bel Power Solutions

AC/DC CONVERTER 12V 40W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 40W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 157.50

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MAP42-1012G	MAP42 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	3.4 A	1.7 - 3.4 A
Efficiency	70 %	70 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	40 W	40 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.25 "	1.25 "
Size / Dimension [z]	31.8 mm	31.8 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	12 V	12 - 24 V

AC/DC CONVERTER 24V 40W

Part	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Type	Voltage - Isolation	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Features	Efficiency	Mounting Type	Current - Output 1	Approval Agency
Bel Power Solutions MAP42-1024G	40 W	1	70 °C	0 °C		Open Frame	2.6 kV	ITE (Commercial)	90 VAC	264 VAC	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	24 V	Adjustable Output, Remote Sense, Universal Input	70 %	Chassis Mount	1.7 A	CE
Bel Power Solutions MAP42-1012G	40 W	1	70 °C	0 °C		Open Frame	2.6 kV	ITE (Commercial)	90 VAC	264 VAC	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	12 V	Adjustable Output, Remote Sense, Universal Input	70 %	Chassis Mount	3.4 A	CE
