TW3-5S15

Active

Polytron

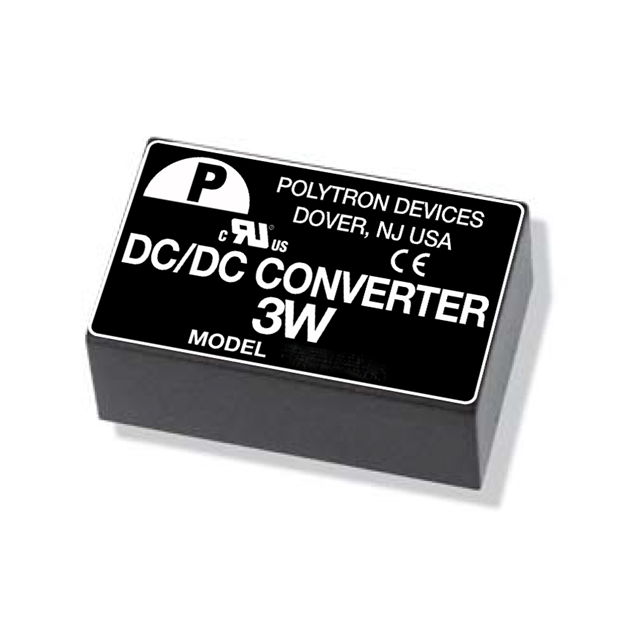

DC DC CONVERTER 15V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TW3-5S15

Active

Polytron

DC DC CONVERTER 15V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TW3-5S15	TW3-5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 - 167 mA
Current - Output (Max)	-	100 - 167 mA
Current - Output (Max)	-	125 mA
Current - Output (Max) [Max]	200 mA	200 - 600 mA
Efficiency	55 %	55 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-25 °C	-25 °C
Package / Case	24-DIP Module	24-DIP Module
Package / Case	12 Leads	12 Leads
Power (Watts)	3 W	3 W
Size / Dimension [x]	31.8 mm	31.8 mm
Size / Dimension [x]	1.25 "	1.25 "
Size / Dimension [y]	0.8 in	0.8 in
Size / Dimension [y]	20.3 mm	20.3 mm
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.2 mm	10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.75 V	4.75 V
Voltage - Isolation	500 V	500 V
Voltage - Output 1	15 V	5 - 15 V
Voltage - Output 2	-	-15 - -9 V

TW3-5 Series

DC DC CONVERTER 9V 3W

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Applications	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Package / Case	Voltage - Isolation	Voltage - Output 1	Type	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Polytron TW3-5S9	5.5 V	4.75 V	334 mA	55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	1	24-DIP Module	12 Leads	500 V	9 V	Isolated Module	Through Hole
Polytron TW3-5-15	5.5 V	4.75 V		55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	2	24-DIP Module	12 Leads	500 V	15 V	Isolated Module	Through Hole	100 mA	100 mA	-15 V
Polytron TW3-5-9	5.5 V	4.75 V		55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	2	24-DIP Module	12 Leads	500 V	9 V	Isolated Module	Through Hole	167 mA	167 mA	-9 V
Polytron TW3-5S12	5.5 V	4.75 V	250 mA	55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	1	24-DIP Module	12 Leads	500 V	12 V	Isolated Module	Through Hole
Polytron TW3-5S5	5.5 V	4.75 V	600 mA	55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	1	24-DIP Module	12 Leads	500 V	5 V	Isolated Module	Through Hole
Polytron TW3-5S15	5.5 V	4.75 V	200 mA	55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	1	24-DIP Module	12 Leads	500 V	15 V	Isolated Module	Through Hole
Polytron TW3-5-12	5.5 V	4.75 V		55 %	ITE (Commercial)	3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	2	24-DIP Module	12 Leads	500 V	12 V	Isolated Module	Through Hole	125 mA		-12 V	125 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.00

Description

General part information

TW3-5 Series

Isolated Module DC DC Converter 1 Output 15V 200mA 4.75V - 5.5V Input
